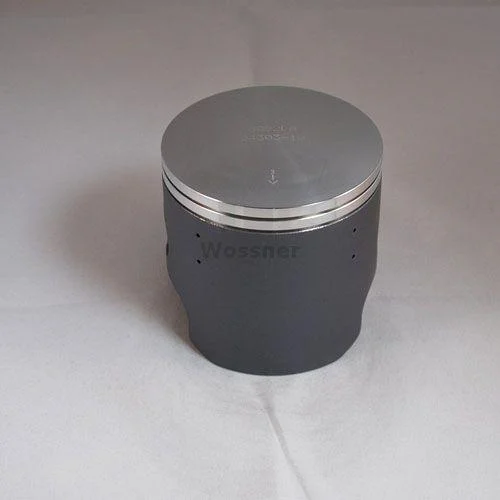

This Wossner piston kit with a 69.01mm bore (+0.01mm oversize, actual size 68.95mm) is built for Kawasaki KDX220R models from 1998 to 2005. Precision-forged in Germany, it ensures exceptional strength, consistent thermal performance, and long-lasting reliability in two-stroke off-road engines.

Features

•


  Forged piston for superior strength and durability





•


  Engineered for optimal heat dissipation from combustion chamber to cylinder walls





•


  Elliptical design delivers even bearing surface to prevent localised pressure and piston collapse





•


  German-manufactured for precision fit and high-quality standards




Specifications

•


  Bore size: 69.01 mm





•


  Actual piston size: 68.95 mm





•


  Display (cm³): 216





•


  Stroke (mm): 58.00





•


  Clearance (mm): 0.06





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height (mm): 32.00




Vehicle Fitments

•


  1998 Kawasaki KDX220





•


  1999 Kawasaki KDX220





•


  2000 Kawasaki KDX220





•


  2001 Kawasaki KDX220





•


  2002 Kawasaki KDX220





•


  2003 Kawasaki KDX220





•


  2004 Kawasaki KDX220





•


  2005 Kawasaki KDX220




Included Components

•


  Piston: Wossner PN# 8092DB





•


  Lock: PN# CW16





•


  Pin: PN# WP027





•


  Ring Set: PN# RSB6900 x 2





•


  Rod: PN# P2033
