PISTON KIT 98-13 KTM200 64.00, WOSSNER 8048DB FORGED

Product image 1
Product image 2
Product image 3
Product image 4

PISTON KIT 98-13 KTM200 64.00, WOSSNER 8048DB FORGED

PISTON KIT 98-13 KTM200 64.00, WOSSNER 8048DB FORGED

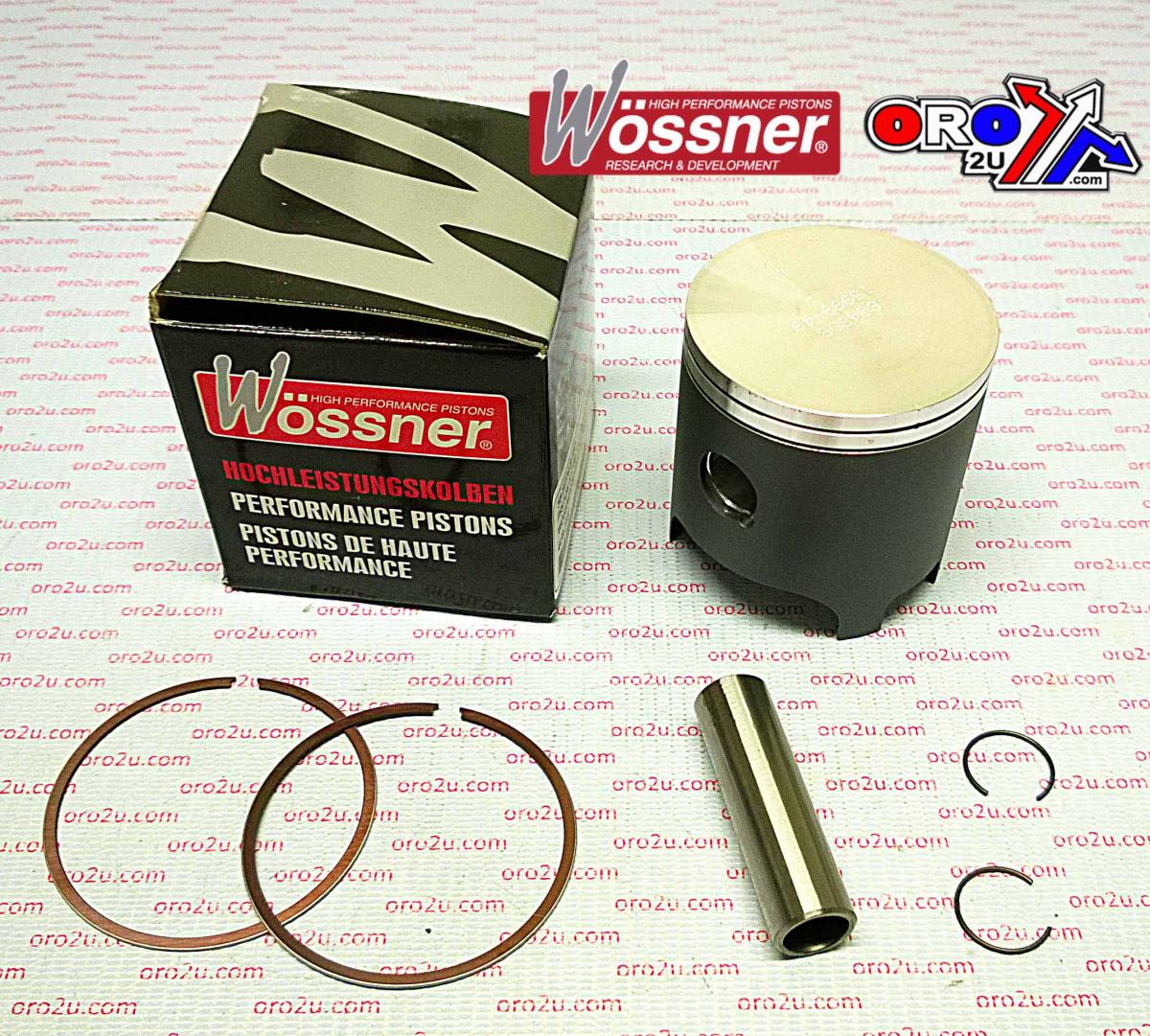

This Wossner piston kit with a 64.01mm bore (+0.01mm oversize) is engineered for KTM SX and EXC 200 models, offering enhanced strength and optimal performance for 2-stroke engines. The forged design ensures high resistance to thermal and mechanical stress, making it suitable for demanding off-road conditions.



Features





  • Forged piston delivers superior strength and reliability




  • Designed for optimal heat transfer from combustion chamber to cylinder wall




  • Elliptical profile ensures even bearing surface during thermal expansion




  • Reduces localised pressure and evenly distributes thrust loads to prevent piston collapse




  • Manufactured in Germany with precision engineering





Specifications





  • Bore: 64.01 mm




  • Actual piston size: 63.95 mm




  • Stroke: 60.00 mm




  • Display volume: 200 cmĀ³




  • Clearance: 0.06 mm




  • Compression ratio: 2-stroke (Wossner and OEM)




  • Compression height: 28.00 mm





Cross-Reference OEM Part Numbers





  • Piston Kit: 8048DB




  • Lock: CW16




  • Pin: WP027




  • Ring Set: RSB6400 x 2




  • Part No: 56-W770.B.WO





Cross-Reference Aftermarket Part Numbers





  • Wossner: 8048DA




  • Wiseco: 770M06400




  • Vertex: 22926




  • ProX: 01-6248




  • Namura: NX-70021




  • KTM OEM Piston I Cpl.: 52330007400 I




  • KTM OEM Piston II Cpl.: 52330007400 II




  • KTM OEM Pin: 52330033100




  • KTM OEM Ring: 52330032100




  • KTM OEM Clip: 52330074100





Vehicle Fitments





  • KTM SX 200 2003ā€“2005




  • KTM EXC 200 1998ā€“2013



$265.40
PISTON KIT 98-13 KTM200 64.00, WOSSNER 8048DB FORGEDā€”
$265.40

Product Information

Shipping & Returns

Description

This Wossner piston kit with a 64.01mm bore (+0.01mm oversize) is engineered for KTM SX and EXC 200 models, offering enhanced strength and optimal performance for 2-stroke engines. The forged design ensures high resistance to thermal and mechanical stress, making it suitable for demanding off-road conditions.



Features





  • Forged piston delivers superior strength and reliability




  • Designed for optimal heat transfer from combustion chamber to cylinder wall




  • Elliptical profile ensures even bearing surface during thermal expansion




  • Reduces localised pressure and evenly distributes thrust loads to prevent piston collapse




  • Manufactured in Germany with precision engineering





Specifications





  • Bore: 64.01 mm




  • Actual piston size: 63.95 mm




  • Stroke: 60.00 mm




  • Display volume: 200 cmĀ³




  • Clearance: 0.06 mm




  • Compression ratio: 2-stroke (Wossner and OEM)




  • Compression height: 28.00 mm





Cross-Reference OEM Part Numbers





  • Piston Kit: 8048DB




  • Lock: CW16




  • Pin: WP027




  • Ring Set: RSB6400 x 2




  • Part No: 56-W770.B.WO





Cross-Reference Aftermarket Part Numbers





  • Wossner: 8048DA




  • Wiseco: 770M06400




  • Vertex: 22926




  • ProX: 01-6248




  • Namura: NX-70021




  • KTM OEM Piston I Cpl.: 52330007400 I




  • KTM OEM Piston II Cpl.: 52330007400 II




  • KTM OEM Pin: 52330033100




  • KTM OEM Ring: 52330032100




  • KTM OEM Clip: 52330074100





Vehicle Fitments





  • KTM SX 200 2003ā€“2005




  • KTM EXC 200 1998ā€“2013
