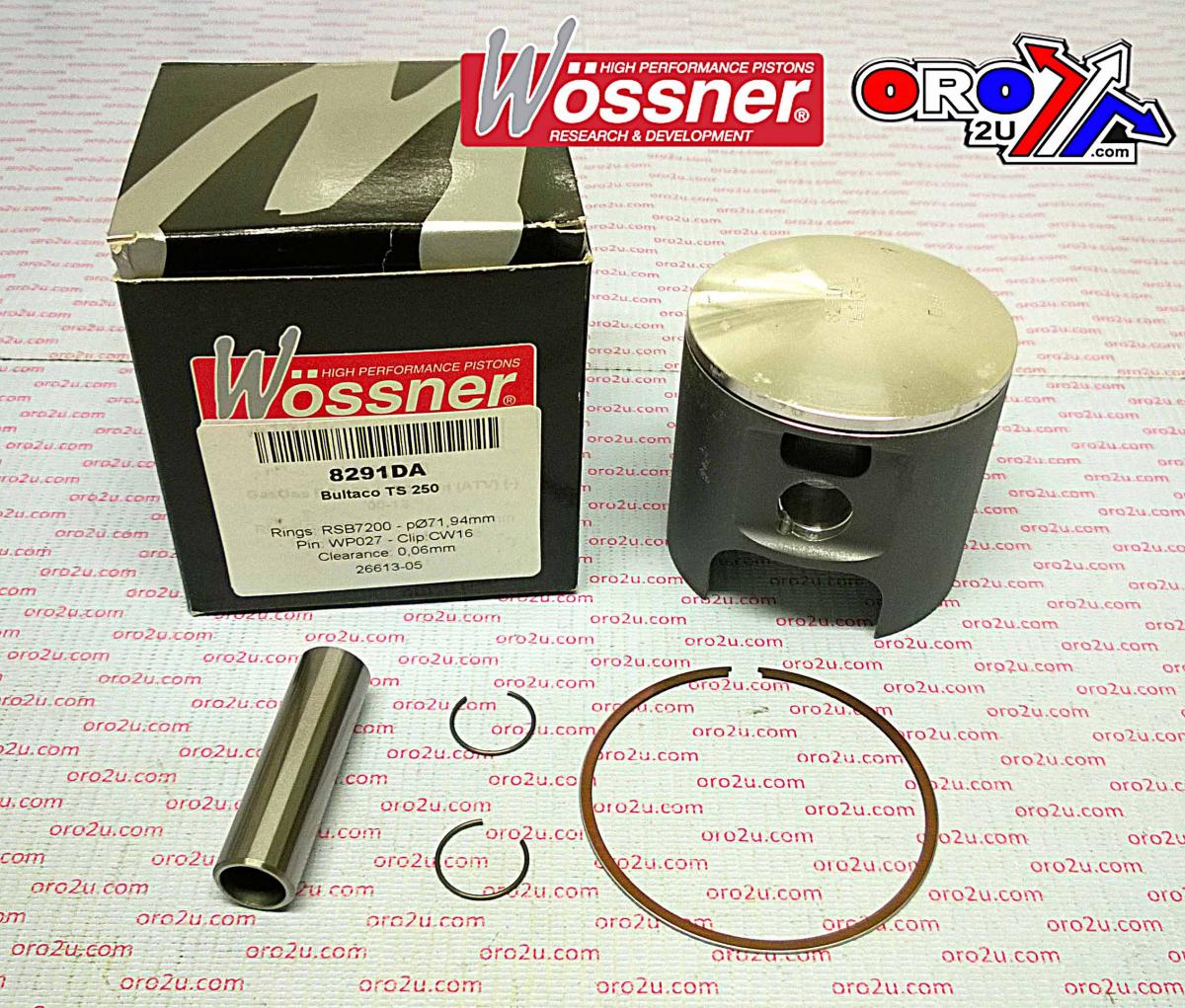

This Wossner forged piston kit with a 72mm bore (actual 71.94mm) is designed for the Bultaco TS250 model year 1970. Engineered for two-stroke performance, it offers exceptional strength and thermal efficiency through precise German manufacturing.

Features

•


  Forged aluminium construction for superior durability under high loads





•


  Elliptical skirt design ensures balanced thrust load distribution and minimises distortion





•


  Designed for optimal heat transfer from the combustion chamber to cylinder walls





•


  Manufactured in Germany with precision tolerances




Specifications

•


  Bore Size: 72.00mm (actual 71.94mm)





•


  Stroke: 60.00 mm





•


  Clearance: 0.06 mm





•


  Wossner Compression Ratio: 2 stroke





•


  OEM Compression Ratio: 2 stroke





•


  Compression Height: 29.00 mm





•


  Lock Part Number: CW16





•


  Pin Part Number: WP027





•


  Ring Set Part Number: RSB7200




Cross-Reference OEM Part Numbers

•


  09104904




Vehicle Fitments

•


  Bultaco TS250 1970
