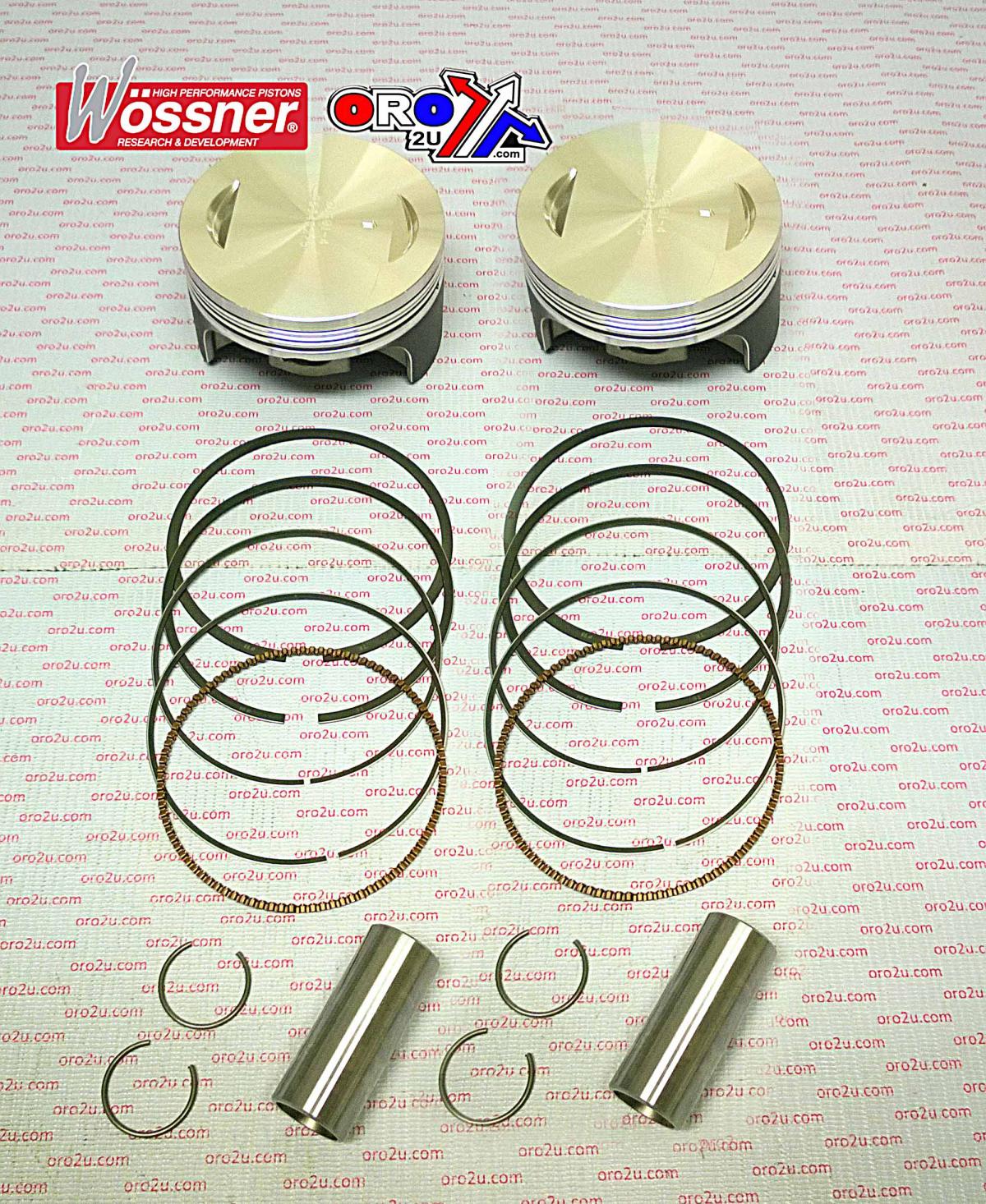

The Wossner K8594D425-2 piston kit is a forged performance component tailored for Harley Davidson Twin Cam engines. Designed with a +4.25mm oversize bore (3.915") and a flat top configuration, these pistons deliver enhanced structural integrity and efficient heat management. Manufactured in Germany, the kit includes all essential components required for reliable engine assembly and operation.

Features

•


  Forged high-performance pistons with skirt coating





•


  Elliptical design ensures uniform load distribution under heat expansion





•


  Optimised for effective heat transfer from combustion chamber to cylinder walls





•


  Flat top pistons with 8.5:1 compression ratio





•


  Includes rings, clips, and pins




Specifications

•


  Bore size: 3.915" (+0.167", +4.25mm)





•


  Compression ratio: 8.5:1





•


  Quantity: 2 pistons per kit





•


  Made in Germany




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9865.425.WO





•


  Ring Set Part No. 995XSY




Vehicle Fitments

•


  Harley Davidson 1453cc Twin Cam 1999–2009





•


  Harley Davidson 1577cc Twin Cam 1999–2009





•


  Twin Cam 88 (88 cu. in.) 1999–2006
