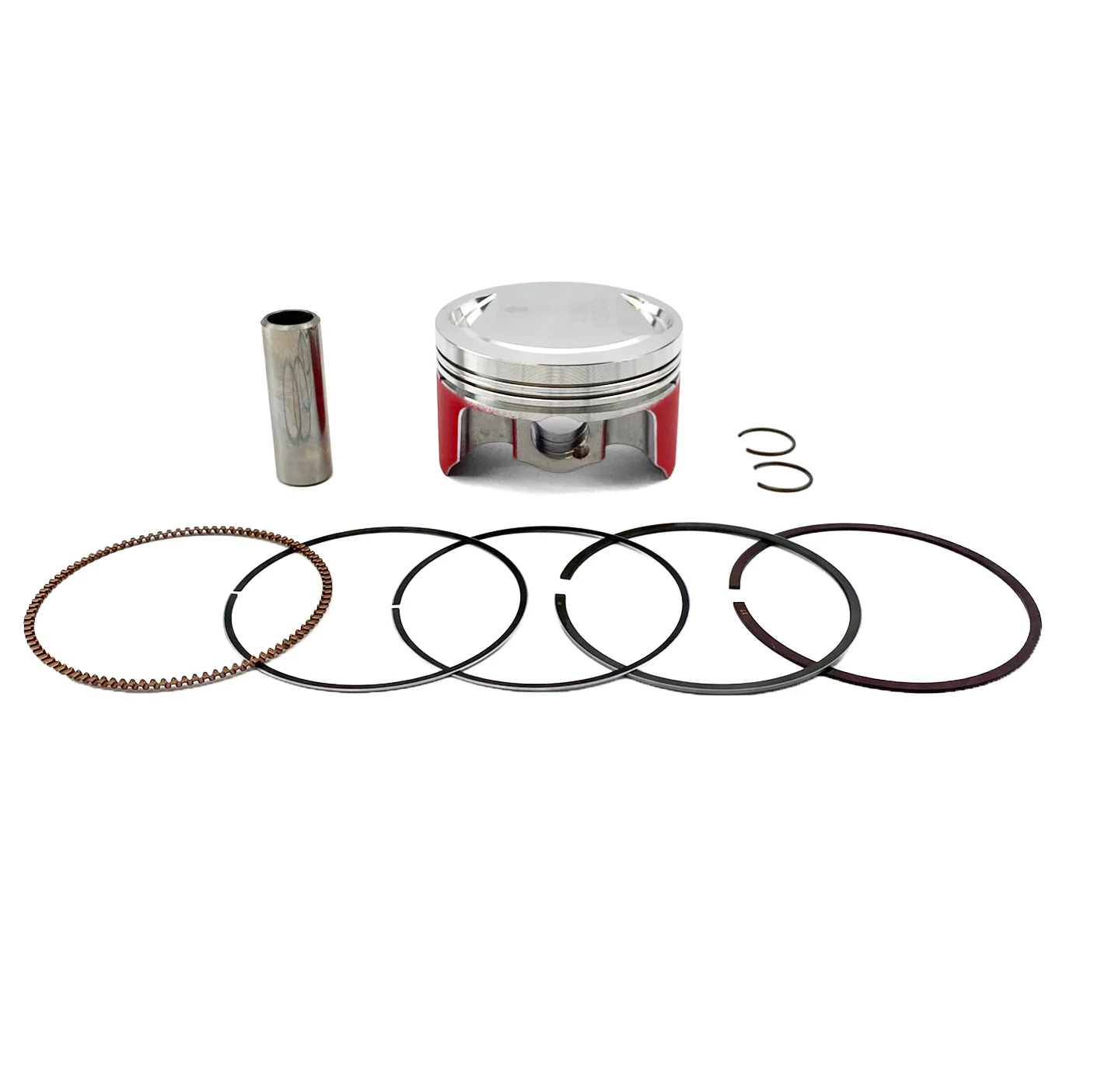

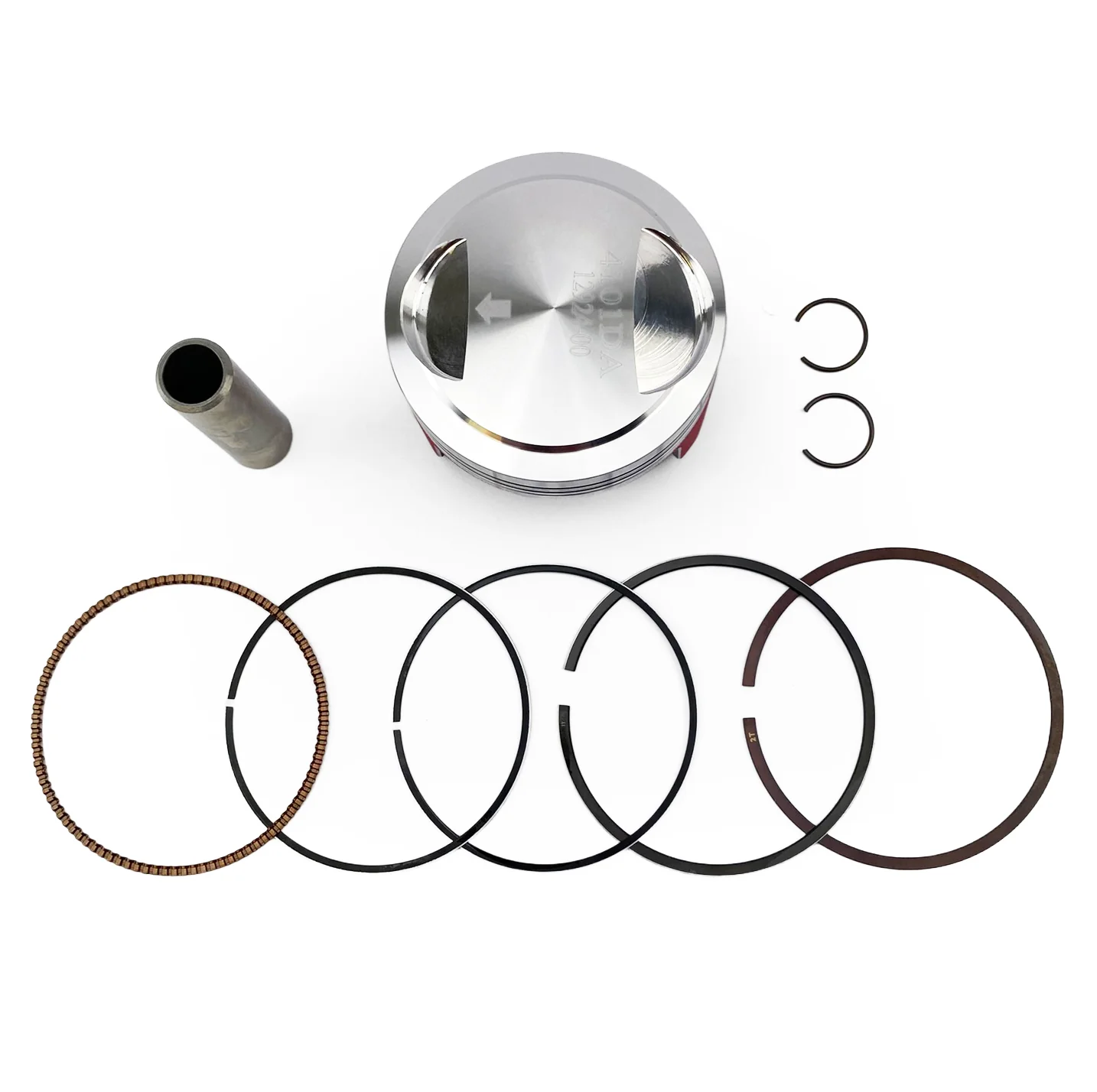

High-performance piston designed for Honda CBR 125R models, delivering exceptional reliability and precision. This piston is engineered to meet the demands of competitive environments while maintaining optimal engine performance.

Features:

• Compression ratio of 11.5:1 for enhanced engine efficiency.


• Bore size of 58.00 mm, with piston size at 57.96 mm for a precise fit.


• Manufactured with a clearance of 0.04 mm to ensure optimal operation.


• Supplied in standard size (STD).

Specifications:

• Number of cylinders: 1


• Stroke: 47.20mm


• Displacement: 124.7


• Compression distance: 18.5mm


• Estimated weight: 101.5g


• Ring set: TPR58.00


• Wrist pin: WP157-SP


• Retaining clip: CW13

Vehicle Fitments:

HONDA CBR 125R 2004 - 2015

Part Number: 4101DA
