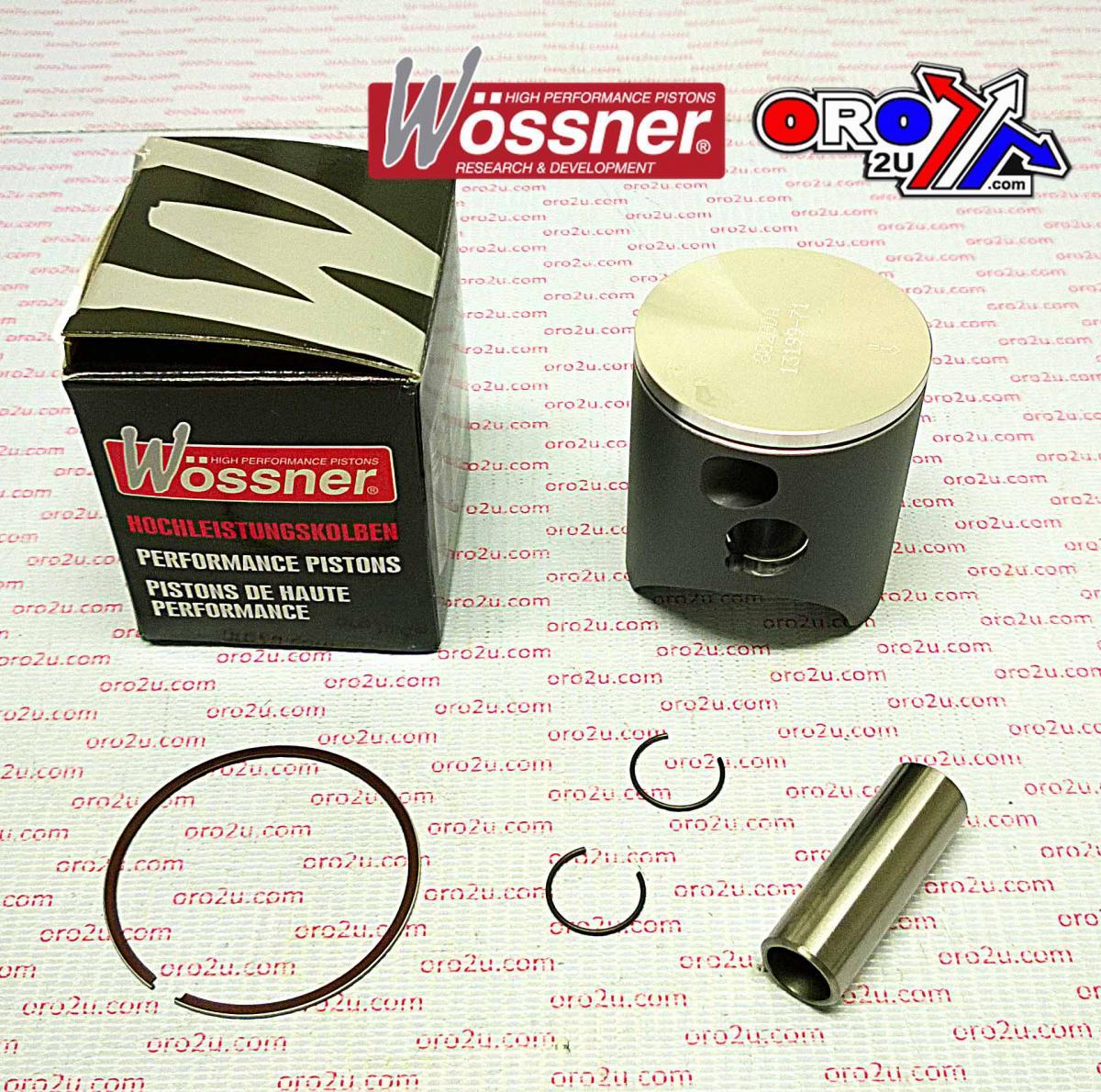

Piston Kit 54.03mm Bore 53.98 Wossner 8020DD (+0.03)

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localised pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Lock P/N: CW15


• Pin P/N: WP032


• Ring Set P/N: RSB5400


• Rod P/N: P2009

Specifications:

• Display (cm3): 125


• Hub Stroke (mm): 54.50


• Clearance (mm): 0.05


• Wossner Compression Ratio: 2 stroke


• OEM Compression Ratio: 2 stroke


• Dome Volume (cm3):


• Compression Height (mm): 28.00


• Theoretical Weight (G):

Cross Reference Numbers (ONLY):

• 13110-KZ4-505


• 09104723


• 676M05400


• 8089DA


• 800099749/3


• 09104812


• 760M05400

Fitment:

HONDA CR125 1992 - 1999,
