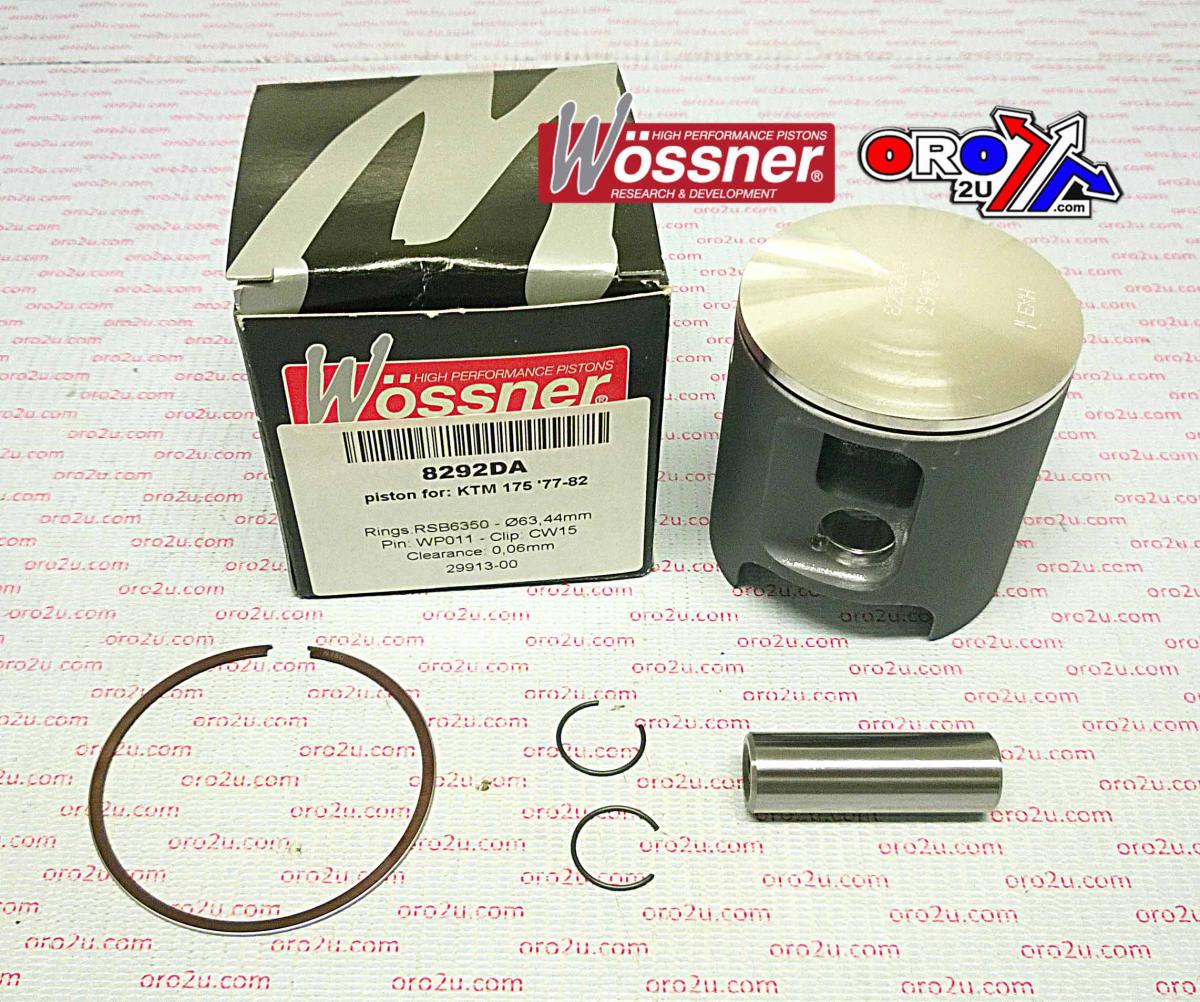

This Wossner forged piston kit has a 65.00mm bore (actual 64.94mm) and serves as a +1.50mm oversize replacement for KTM 175 GS and MC models from 1977 to 1982. Engineered specifically for two-stroke engines, it features a high-strength design that promotes effective heat transfer and structural durability. The elliptical profile ensures uniform pressure distribution, minimising the risk of piston collapse during operation.

Features

•


  Forged construction ensures superior durability and thermal conductivity





•


  Elliptical shape for even thrust load distribution under expansion





•


  Designed for high-performance two-stroke applications




Specifications

•


  Bore Size: 65.00mm (actual 64.94mm)





•


  Stroke: 54.00 mm





•


  Clearance: 0.06 mm





•


  Compression Ratio (Wossner): 2-stroke





•


  Compression Ratio (OEM): 12-stroke





•


  Compression Height: 37.00 mm





•


  Lock Part Number: CW15





•


  Pin Part Number: WP011





•


  Ring Set Part Number: RSB6500




Cross-Reference OEM Part Numbers

•


  56-W967.150.WO




Vehicle Fitments

•


  KTM 175 GS (1977–1982)





•


  KTM 175 MC (1977–1982)
