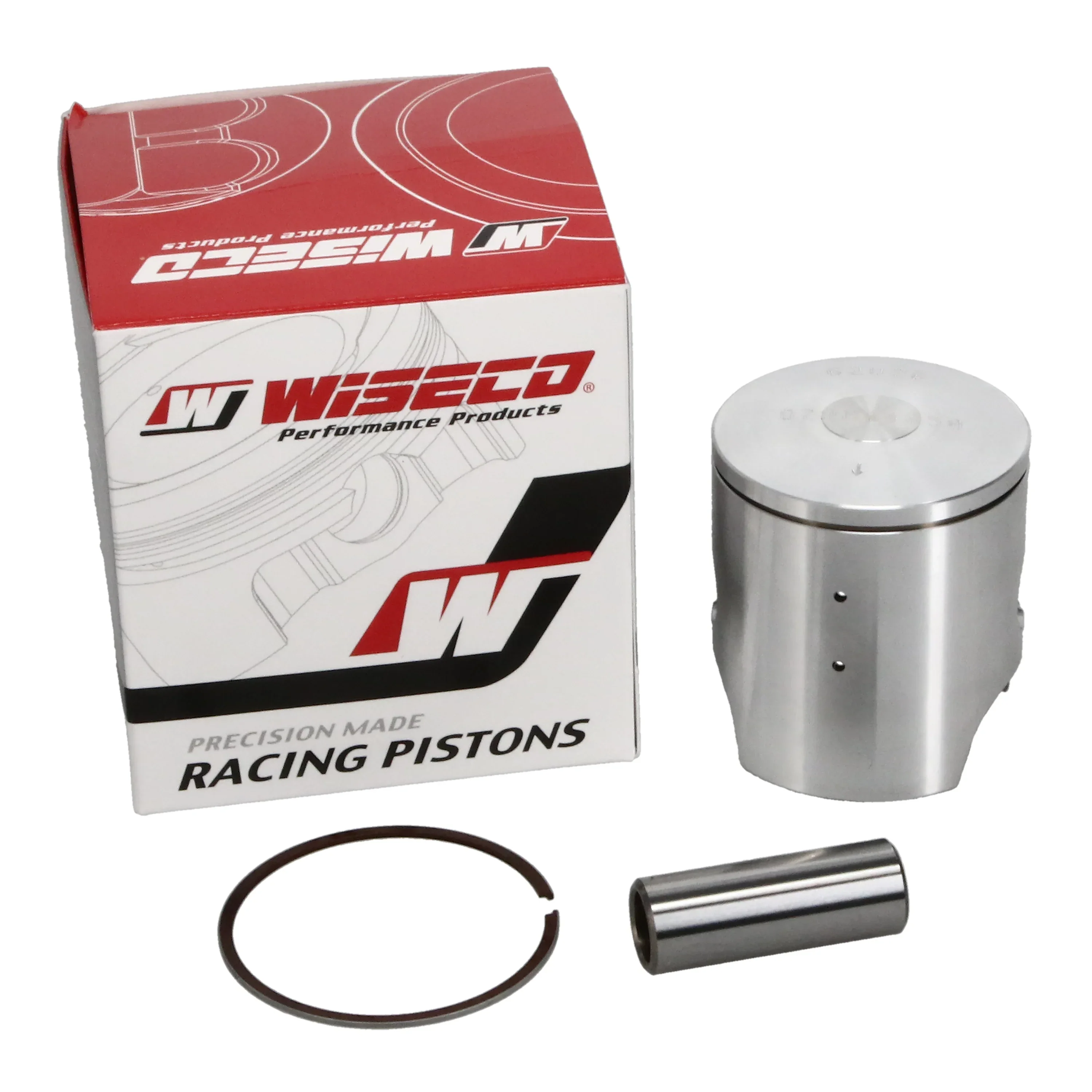

The Wiseco Single Piston Kit for the Kawasaki KX85 (2014–2025) is built for high-performance applications, utilising a standard 48.50mm bore with an actual size of 48.46mm. Crafted from high-silicon aluminium alloy and incorporating dedicated aerospace-grade forgings, this piston is engineered for maximum strength, torque, and durability. Each piston is supplied with rings and circlips.

Features

•


  Forged from high-silicon aluminium alloy for maximum strength and dependability





•


  Innovative forging design and piston skirt provide maximum horsepower and torque





•


  Dedicated forgings for superior strength-to-weight ratio using aerospace alloy





•


  Includes rings and circlips




Specifications

•


  Piston Size: STD 48.50mm





•


  Actual Size: 48.46mm





•


  Kit Part Number: 56-W879.00C.WI





•


  Wiseco Part Number: 879M04850C





•


  Ring Set: 1909CS – 48.50mm





•


  Pin Locks: CW14 – Round Wire, 14mm (pair)





•


  Wrist Pin: S517 – 14mm x 1.5098, unchromed, for 2-cycle engines




Cross-Reference OEM Part Numbers

•


  13001-0744





•


  13002-0040





•


  13003-1441





•


  92033-0005




Vehicle Fitments

•


  Kawasaki KX85 (2014–2025)
