PISTON KIT NSR125 A 54.00mm, WOSSNER 8019DA HONDA ROAD

Product image 1
Product image 2

PISTON KIT NSR125 A 54.00mm, WOSSNER 8019DA HONDA ROAD

PISTON KIT NSR125 A 54.00mm, WOSSNER 8019DA HONDA ROAD

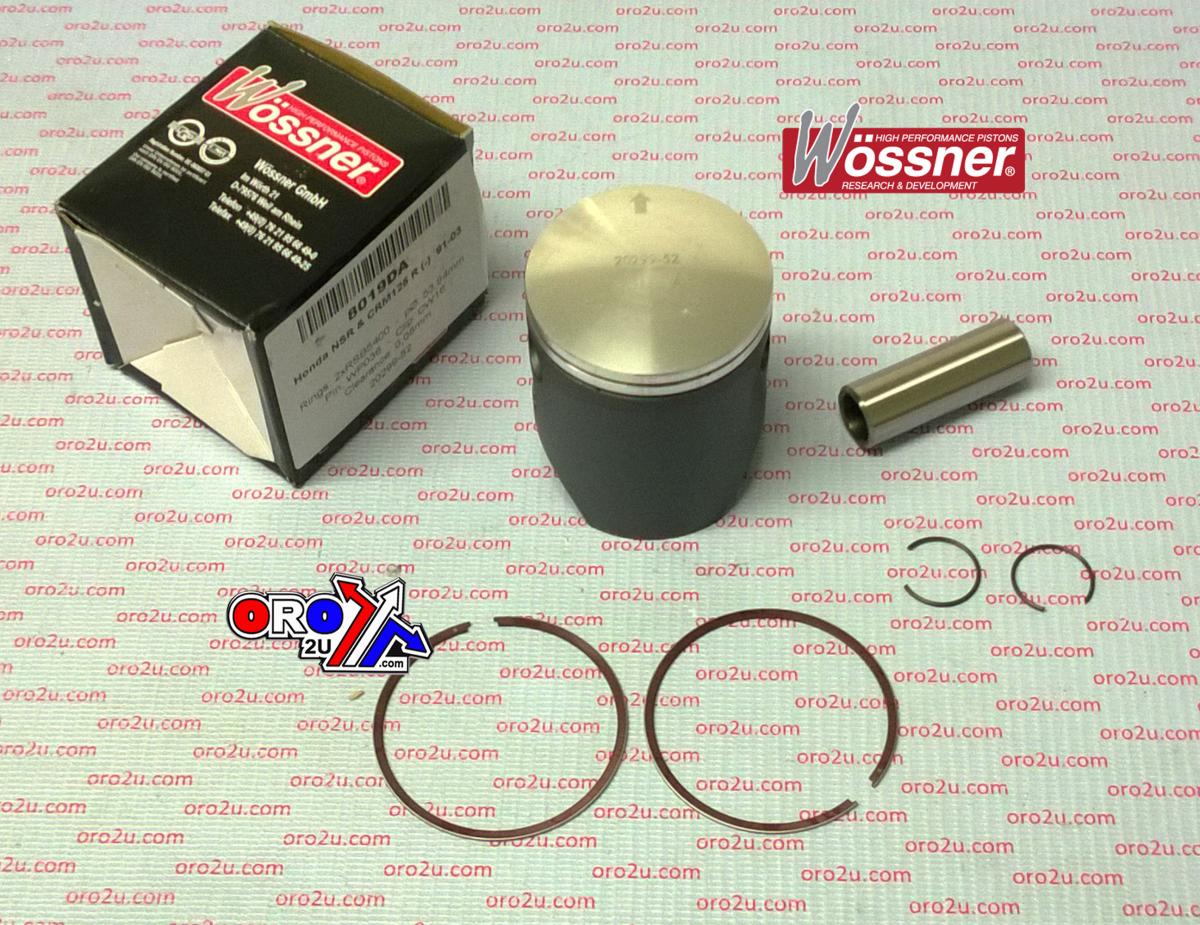

Wossner forged piston kit 8019DA is a standard size piston (54.00mm bore) engineered for the Honda CRM R 125 and NSR R 125 models from 1991 to 2003. With precision manufacturing and advanced design features, this piston offers excellent durability, thermal efficiency, and consistent performance. Manufactured in Germany, it is built to meet demanding performance requirements.



Features





  • Forged piston construction ensures superior strength and longevity




  • Elliptical design provides consistent bearing surface during heat expansion




  • Efficient heat transfer from combustion chamber to cylinder walls




  • Reduces localised pressure to prevent piston collapse




  • Made in Germany





Specifications





  • Bore: 54.00mm (Measured: 53.94mm)




  • Display Volume: 124 cm³




  • Stroke: 54.50mm




  • Clearance: 0.06mm




  • Compression Height: 30.00mm




  • Wossner Compression Ratio: 2-stroke




  • OEM Compression Ratio: 2-stroke




  • Part No.: 56-W906+000.WO (Wossner 8019DA)




  • Ring Set: RSB5400 x 2




  • Lock P/N: CW16




  • Pin P/N: WP036





Cross-Reference OEM Part Numbers





  • Not provided





Vehicle Fitments





  • 1991 Honda CRM R 125




  • 1992 Honda CRM R 125




  • 1993 Honda CRM R 125




  • 1994 Honda CRM R 125




  • 1995 Honda CRM R 125




  • 1996 Honda CRM R 125




  • 1997 Honda CRM R 125




  • 1998 Honda CRM R 125




  • 1999 Honda CRM R 125




  • 2000 Honda CRM R 125




  • 2001 Honda CRM R 125




  • 2002 Honda CRM R 125




  • 2003 Honda CRM R 125




  • 1991 Honda NSR R 125




  • 1992 Honda NSR R 125




  • 1993 Honda NSR R 125




  • 1994 Honda NSR R 125




  • 1995 Honda NSR R 125




  • 1996 Honda NSR R 125




  • 1997 Honda NSR R 125




  • 1998 Honda NSR R 125




  • 1999 Honda NSR R 125




  • 2000 Honda NSR R 125




  • 2001 Honda NSR R 125




  • 2002 Honda NSR R 125




  • 2003 Honda NSR R 125



$80.29

Original: $229.39

-65%
PISTON KIT NSR125 A 54.00mm, WOSSNER 8019DA HONDA ROAD—

$229.39

$80.29

Product Information

Shipping & Returns

Description

Wossner forged piston kit 8019DA is a standard size piston (54.00mm bore) engineered for the Honda CRM R 125 and NSR R 125 models from 1991 to 2003. With precision manufacturing and advanced design features, this piston offers excellent durability, thermal efficiency, and consistent performance. Manufactured in Germany, it is built to meet demanding performance requirements.



Features





  • Forged piston construction ensures superior strength and longevity




  • Elliptical design provides consistent bearing surface during heat expansion




  • Efficient heat transfer from combustion chamber to cylinder walls




  • Reduces localised pressure to prevent piston collapse




  • Made in Germany





Specifications





  • Bore: 54.00mm (Measured: 53.94mm)




  • Display Volume: 124 cm³




  • Stroke: 54.50mm




  • Clearance: 0.06mm




  • Compression Height: 30.00mm




  • Wossner Compression Ratio: 2-stroke




  • OEM Compression Ratio: 2-stroke




  • Part No.: 56-W906+000.WO (Wossner 8019DA)




  • Ring Set: RSB5400 x 2




  • Lock P/N: CW16




  • Pin P/N: WP036





Cross-Reference OEM Part Numbers





  • Not provided





Vehicle Fitments





  • 1991 Honda CRM R 125




  • 1992 Honda CRM R 125




  • 1993 Honda CRM R 125




  • 1994 Honda CRM R 125




  • 1995 Honda CRM R 125




  • 1996 Honda CRM R 125




  • 1997 Honda CRM R 125




  • 1998 Honda CRM R 125




  • 1999 Honda CRM R 125




  • 2000 Honda CRM R 125




  • 2001 Honda CRM R 125




  • 2002 Honda CRM R 125




  • 2003 Honda CRM R 125




  • 1991 Honda NSR R 125




  • 1992 Honda NSR R 125




  • 1993 Honda NSR R 125




  • 1994 Honda NSR R 125




  • 1995 Honda NSR R 125




  • 1996 Honda NSR R 125




  • 1997 Honda NSR R 125




  • 1998 Honda NSR R 125




  • 1999 Honda NSR R 125




  • 2000 Honda NSR R 125




  • 2001 Honda NSR R 125




  • 2002 Honda NSR R 125




  • 2003 Honda NSR R 125
