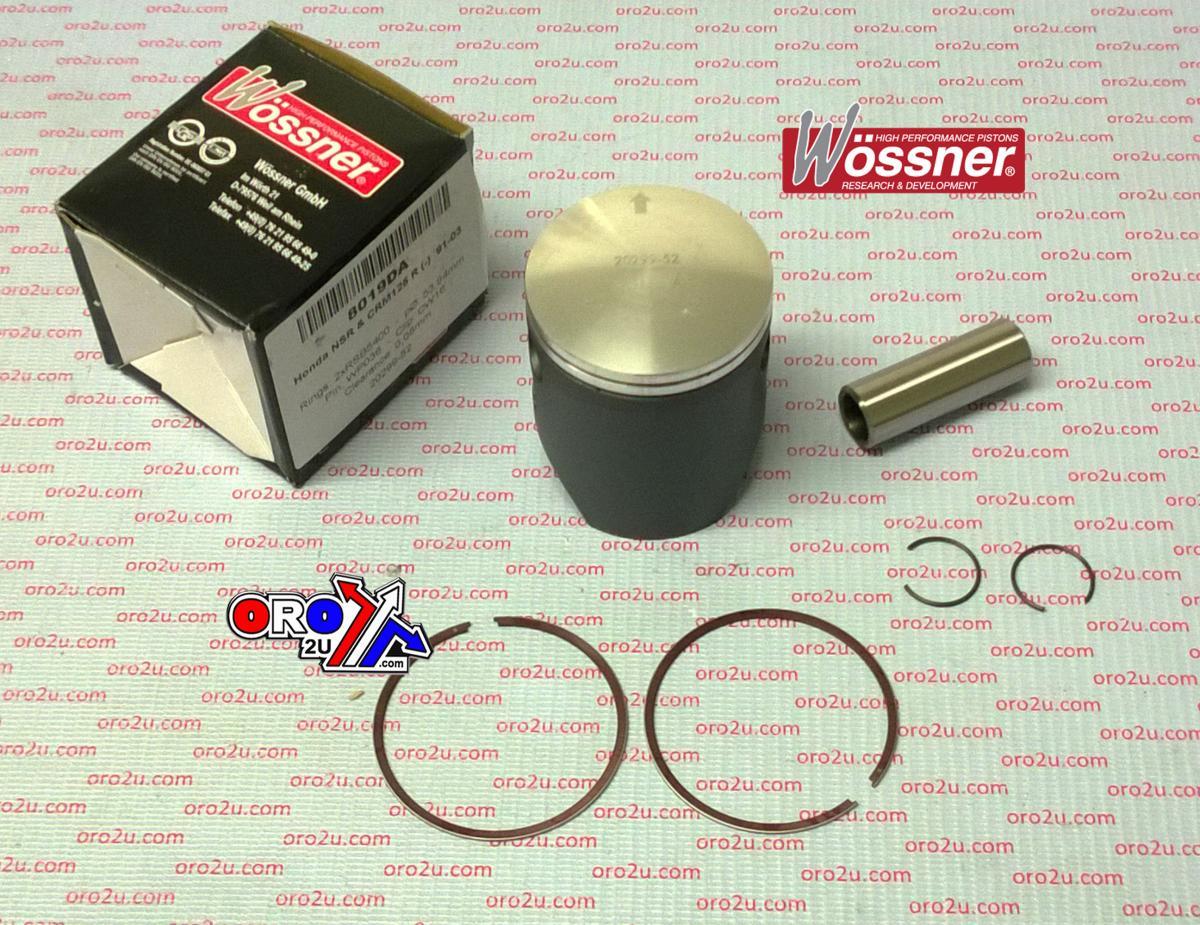

Wossner forged piston kit 8019DB is a +0.01mm oversized piston with a 54.00mm nominal bore, specifically developed for Honda CRM R 125 (1986–2006) and NSR R 125 (1988–2003) models. Manufactured in Germany, this piston delivers superior structural integrity and thermal efficiency, making it ideal for performance and longevity in two-stroke engines.

Features

•


  Forged construction ensures high strength and durability under stress





•


  Elliptical profile maintains a uniform bearing surface during heat expansion





•


  Facilitates optimal heat transfer from combustion chamber to cylinder walls





•


  Prevents piston collapse by evenly distributing thrust loads





•


  Made in Germany




Specifications

•


  Bore: 54.00mm (Measured: 53.95mm)





•


  Display Volume: 124 cm³





•


  Stroke: 54.50mm





•


  Clearance: 0.06mm





•


  Compression Height: 30.00mm





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke





•


  Part No.: 56-W906+00.B.WO (Wossner 8019DB)





•


  Ring Set: RSB5400 x 2





•


  Lock P/N: CW16





•


  Pin P/N: WP036




Cross-Reference OEM Part Numbers

•


  Not provided




Vehicle Fitments

•


  1986–2006 Honda CRM R 125





•


  1988–2003 Honda NSR R 125
