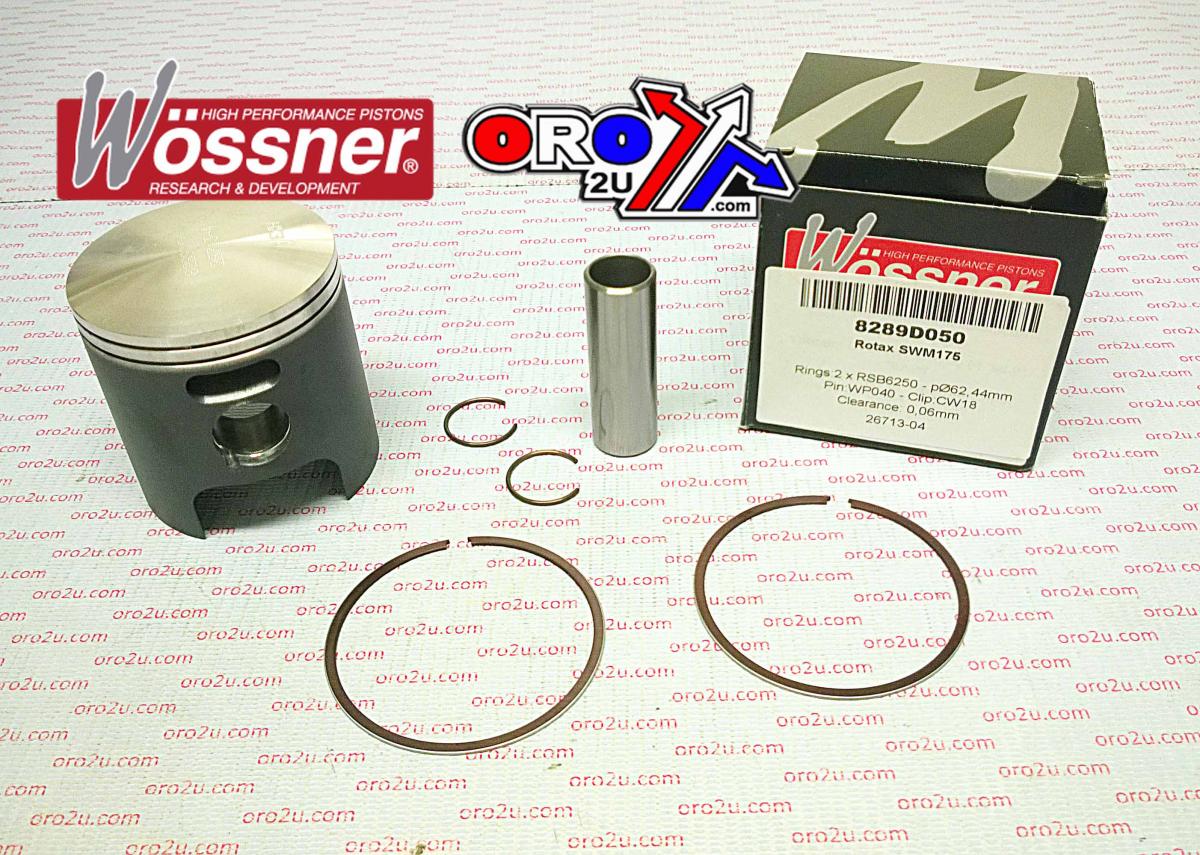

This Wossner forged piston kit with a 62mm nominal bore (actual 61.94mm) is designed for ROTAX SWM175 engines produced between 1977 and 1982. Engineered for high durability and thermal efficiency, it supports consistent performance in two-stroke applications.

Features

•


  Forged construction enhances strength and longevity





•


  Optimised for effective heat transfer to the cylinder walls





•


  Elliptical design minimises stress concentrations and promotes even load distribution





•


  Manufactured in Germany to precise tolerances




Specifications

•


  Bore Size: 62mm (actual 61.94mm)





•


  Stroke: 57.50 mm





•


  Clearance: 0.06 mm





•


  Wossner Compression Ratio: 2 stroke





•


  OEM Compression Ratio: 2 stroke





•


  Compression Height: 30.00 mm





•


  Lock Part Number: CW18





•


  Pin Part Number: WP040





•


  Ring Set Part Number: RSB6200 x 2




Vehicle Fitments

•


  ROTAX SWM175 1977–1982
