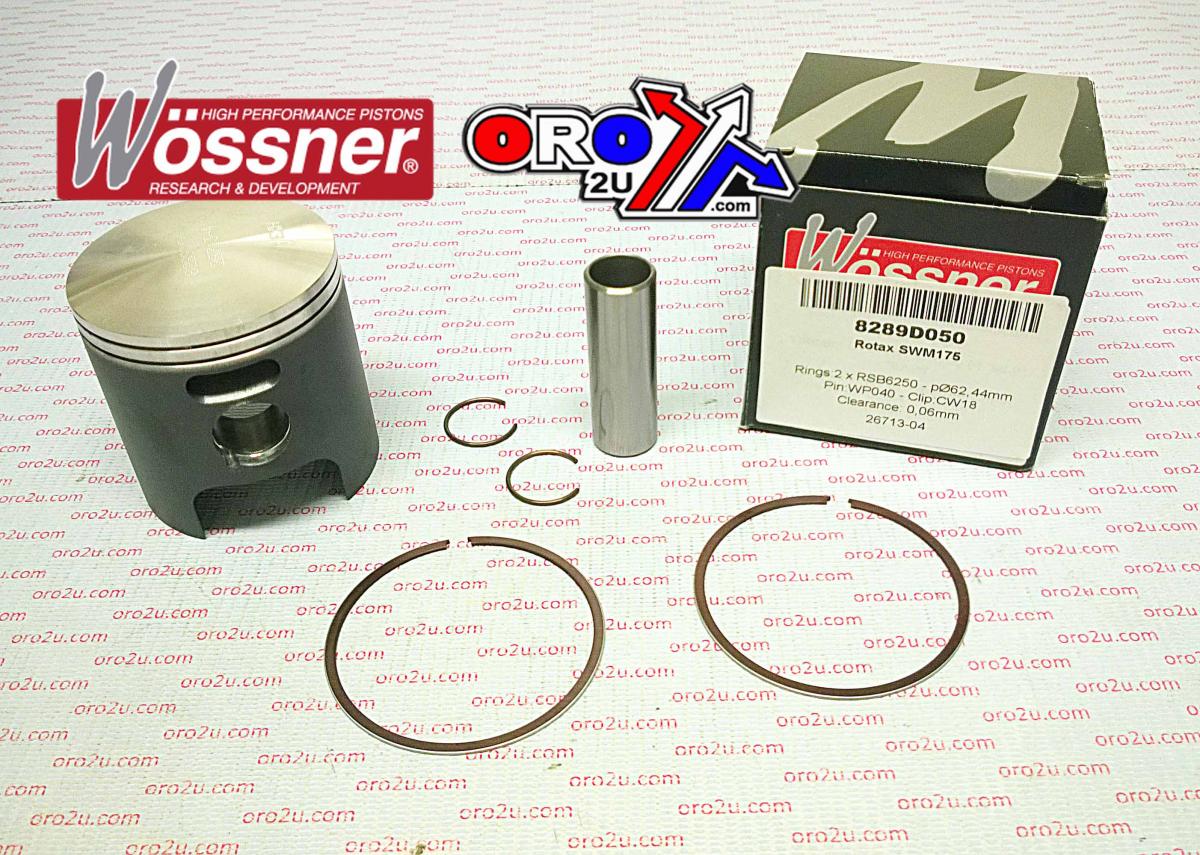

This Wossner forged piston kit features a 63.50mm nominal bore (actual 63.44mm) and is specifically designed for the ROTAX SWM175 models from 1977 to 1982. Built for high strength and consistent performance, it is ideal for two-stroke engine configurations.

Features

•


  Forged construction delivers enhanced strength and durability





•


  Precision-engineered for efficient heat transfer from the combustion chamber to the cylinder wall





•


  Elliptical piston design minimises pressure points and improves thrust load distribution





•


  Manufactured in Germany to stringent quality standards




Specifications

•


  Bore Size: 63.50mm (actual 63.44mm)





•


  Stroke: 57.50 mm





•


  Clearance: 0.06 mm





•


  Wossner Compression Ratio: 2 stroke





•


  OEM Compression Ratio: 2 stroke





•


  Compression Height: 30.00 mm





•


  Lock Part Number: CW18





•


  Pin Part Number: WP040





•


  Ring Set Part Number: RSB6350 x 2




Vehicle Fitments

•


  ROTAX SWM175 1977–1982
