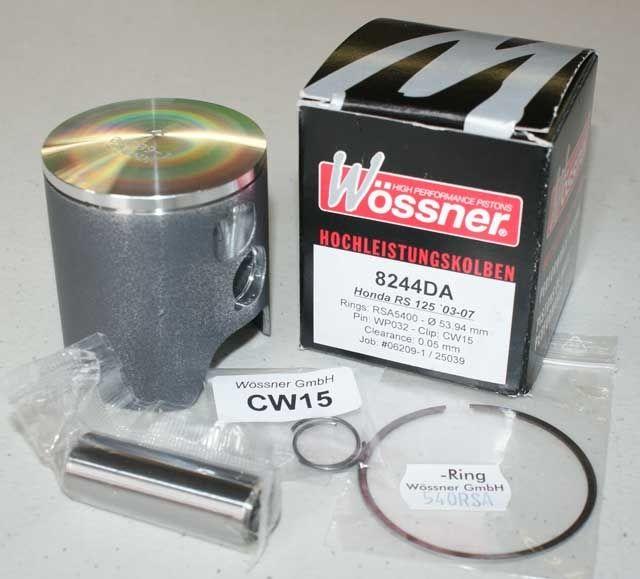

Wossner forged piston kit with a 54mm bore, designed for Honda RS 125 GP models. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged piston for superior strength and design


• Optimized heat transfer to cylinder walls


• Elliptical design for uniform bearing surface and even thrust load distribution


• Manufactured in Germany

Specifications

• Bore: 54mm (+0.02mm oversize)


• Standard size piston (PN# 8244DC)


• Lock Part Number: CW15


• Pin Part Number: WP067


• Ring Set Part Number: RSA5400


• Displacement: 124 cm³


• Stroke: 54.50mm


• Clearance: 0.06mm


• Wossner Compression Ratio: 2-stroke


• OEM Compression Ratio: 2-stroke


• Dome Volume: Domed


• Compression Height: 29.00mm

Cross-Reference OEM Part Numbers

• Not provided

Vehicle Fitments

• Honda RS 125 GP (2003-2009)
