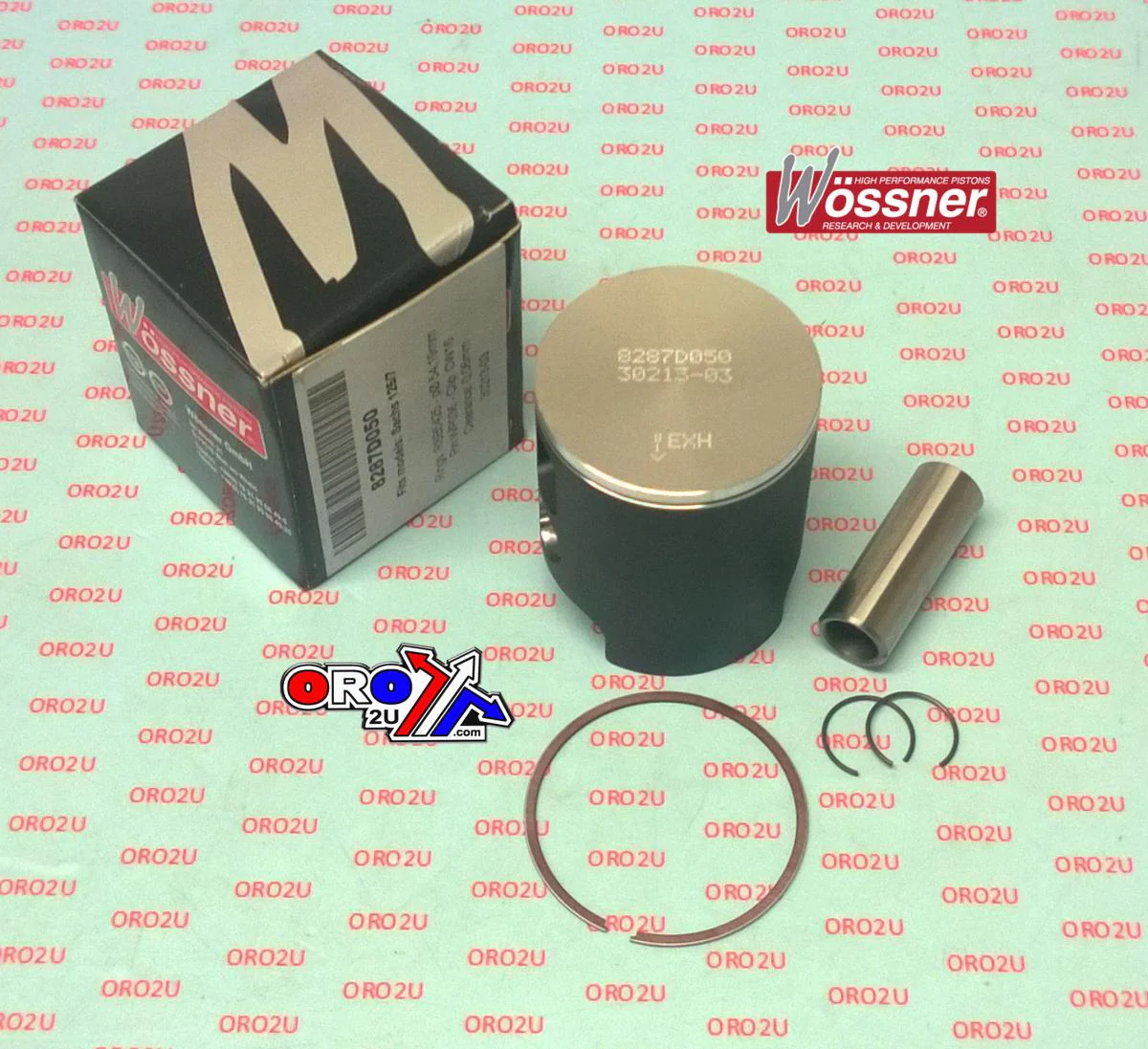

This Wossner forged piston kit with a 55.25mm bore is an oversized (+1.50mm) replacement for the Sachs 125/7 engine. Manufactured in Germany, it delivers excellent strength and heat transfer performance. The elliptical piston design ensures even pressure distribution during thermal expansion, reducing localised stress and enhancing durability in two-stroke engine applications.

Features

•


  Forged construction for superior strength and longevity





•


  Engineered for efficient combustion chamber heat dissipation





•


  Elliptical profile maintains consistent bearing surface under thermal load





•


  Even distribution of thrust loads minimises piston stress and wear





•


  Manufactured in Germany




Specifications

•


  Bore: 55.25mm (+1.50mm Oversize)





•


  Actual bore: 55.19mm





•


  Display volume: 122 cm³





•


  Stroke: 54.00mm





•


  Clearance: 0.06mm





•


  Wossner compression ratio: 2-stroke





•


  OEM compression ratio: 2-stroke





•


  Compression height: 38.00mm




Cross-Reference OEM Part Numbers

•


  56-W9844.150





•


  8287D150





•


  Clip Part Number: CW16





•


  Pin Part Number: WP136





•


  Ring Set Part Number: RSB5525 (x2)




Vehicle Fitments

•


  Sachs 125/7
