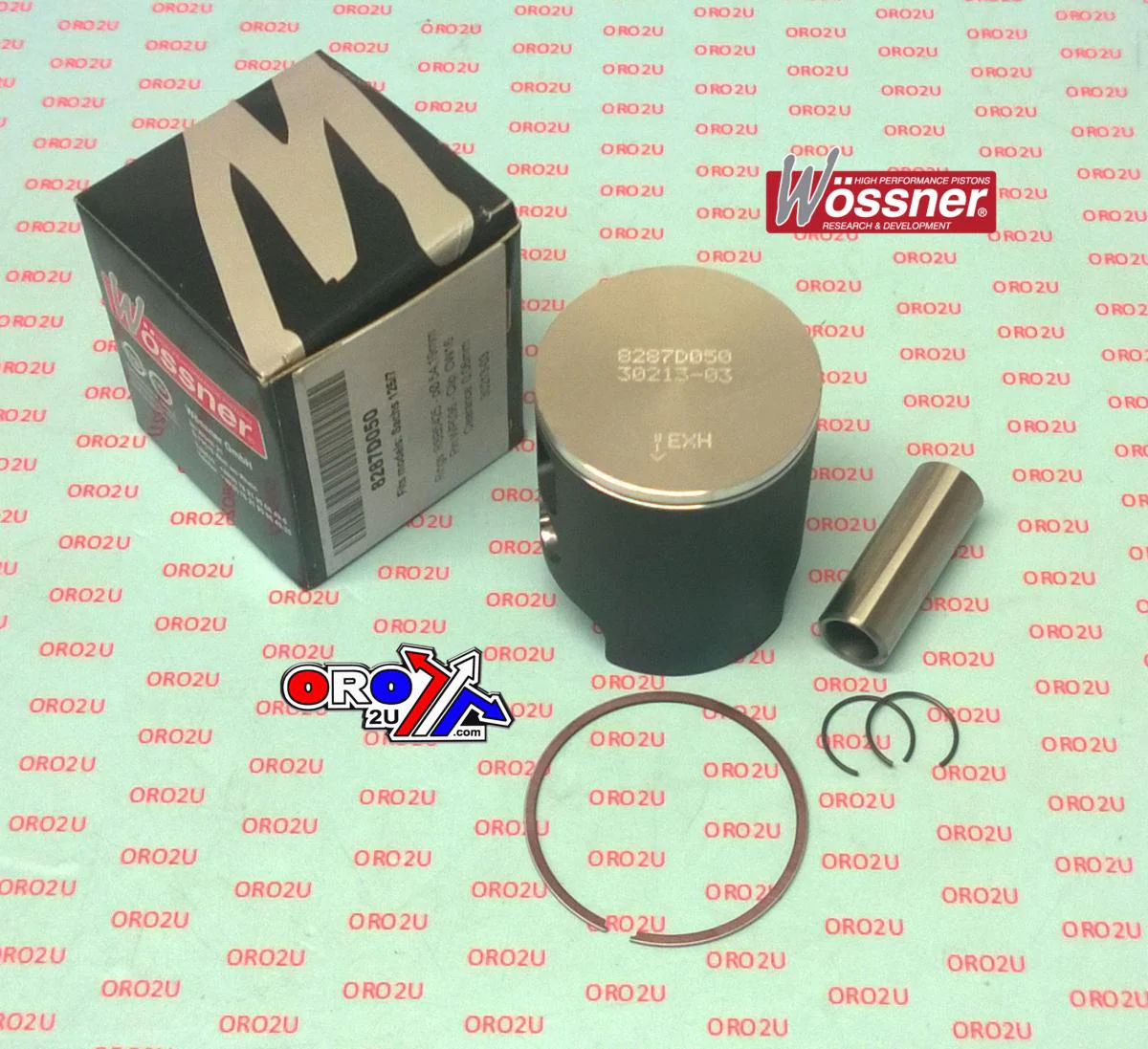

This Wossner forged piston kit with a 55.75mm bore is an oversized (+2.00mm) replacement for the Sachs 125/7 engine. Precision-forged in Germany, it is engineered for strength, thermal efficiency, and longevity. The elliptical piston profile promotes even expansion and load distribution, reducing localised stress and preventing failure under two-stroke operating conditions.

Features

•


  Forged construction for high durability and performance





•


  Optimised for efficient heat transfer from combustion to cylinder walls





•


  Elliptical design provides uniform bearing surface under thermal expansion





•


  Even thrust load distribution minimises localised pressure points





•


  Manufactured in Germany




Specifications

•


  Bore: 55.75mm (+2.00mm Oversize)





•


  Actual bore: 55.69mm





•


  Display volume: 122 cm³





•


  Stroke: 54.00mm





•


  Clearance: 0.06mm





•


  Wossner compression ratio: 2-stroke





•


  OEM compression ratio: 2-stroke





•


  Compression height: 38.00mm




Cross-Reference OEM Part Numbers

•


  56-W9844.200





•


  8287D200





•


  Clip Part Number: CW16





•


  Pin Part Number: WP136





•


  Ring Set Part Number: RSB5575 (x2)




Vehicle Fitments

•


  Sachs 125/7
