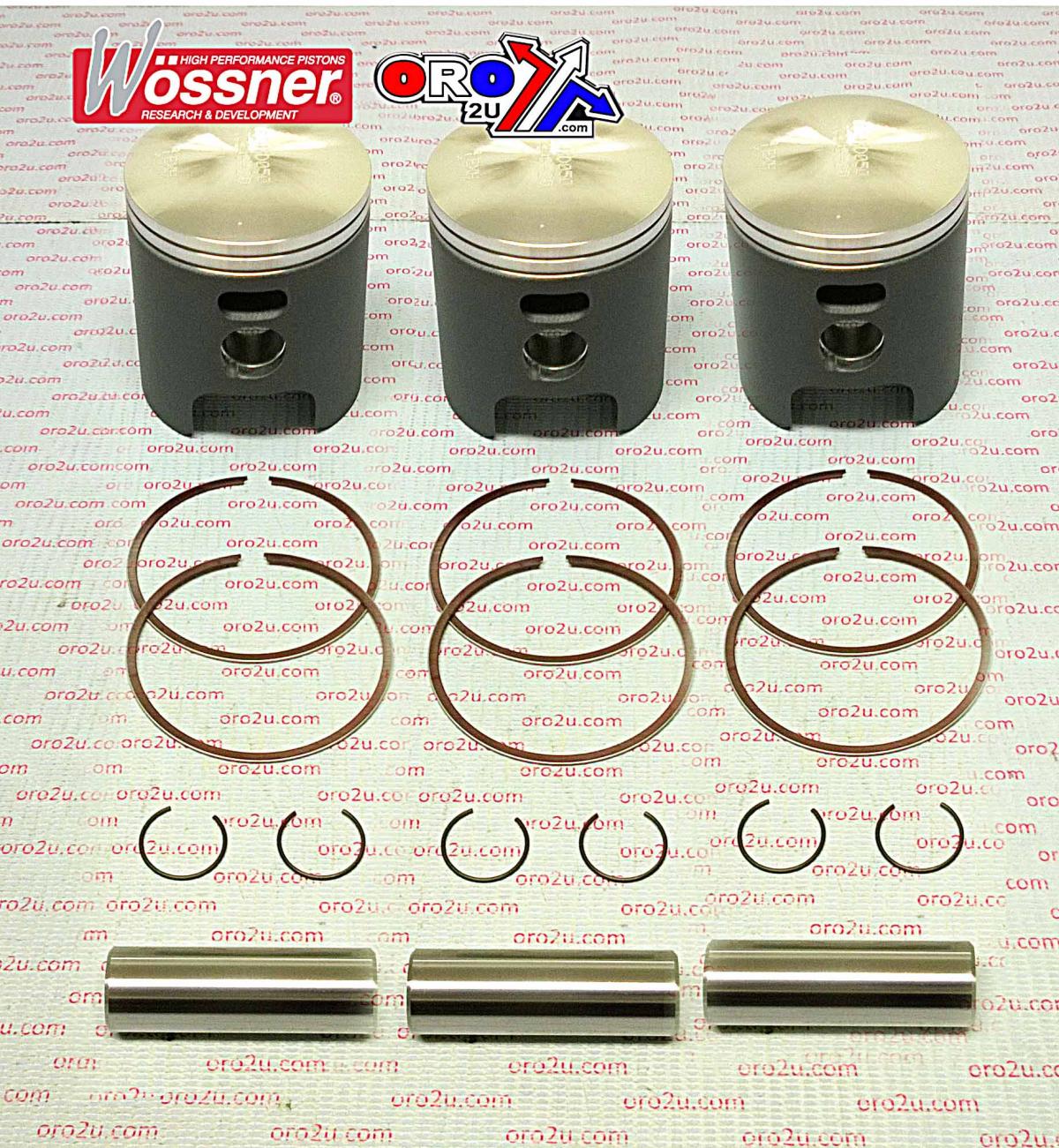

The Wossner K8247D050-3 piston kit is a +0.50mm oversize forged piston set for Kawasaki triple-cylinder 500cc motorcycles produced from 1969 to 1976. With a 60.50mm bore and two-stroke configuration, these pistons are engineered for reliable performance and optimal thermal efficiency. Manufactured in Germany, this kit includes three pistons and necessary installation components.

Features

•


  Forged high-performance pistons with skirt coating





•


  Elliptical design ensures even heat expansion and load distribution





•


  Optimised for efficient heat transfer from combustion chamber to cylinder walls





•


  Designed for two-stroke engine operation





•


  Includes piston pins, clips, and rings




Specifications

•


  Bore size: 60.50mm (+0.50mm oversize)





•


  Measured bore: 60.43mm





•


  Display displacement: 498 cm³





•


  Stroke: 58.80mm





•


  Clearance: 0.07mm





•


  Compression height: 31.90mm





•


  Theoretical weight: 177g





•


  Wossner compression ratio: 2-stroke





•


  OEM compression ratio: 2-stroke





•


  Quantity: 3 pistons per kit





•


  Made in Germany




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9867.050.WO





•


  Clip: CW16





•


  Piston Pin: WP041





•


  Ring Set: RSB6050 x 2 per piston




Vehicle Fitments

•


  Kawasaki 500S 1969–1976





•


  Kawasaki 500 H1 1969–1976





•


  Kawasaki 500 KH 1969–1976





•


  Triple Cylinder Models
