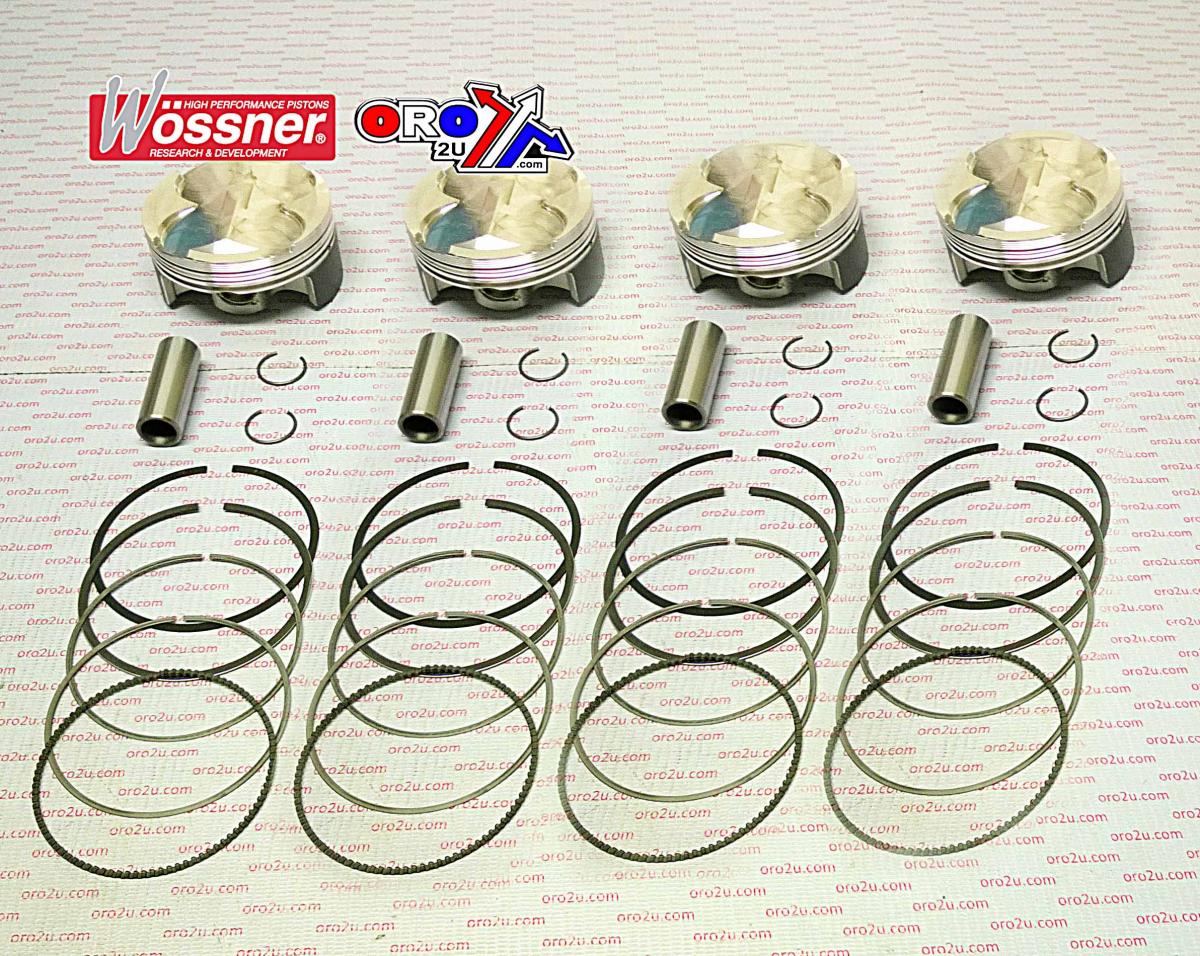

PISTON KIT SET/4 CBR1000RR, WOSSNER K8742DA-4 75.00mm
This Wossner forged piston kit K8742DA-4 features a standard 75.00mm bore and is specifically engineered for HONDA CBR1000RR models from 2004 to 2007. Precision-crafted in Germany, this four-piston set offers increased compression for enhanced performance, while maintaining structural integrity under high thermal and mechanical loads.
Features
-
Forged piston design ensures superior durability and performance
-
Optimised for efficient heat transfer to cylinder walls
-
Elliptical shape provides uniform bearing surface under thermal expansion
-
Prevents localised pressure and piston collapse
-
Manufactured in Germany
Specifications
-
Bore: 75.00mm (STD)
-
Piston code: Wossner K8742DA-4
-
Clip part number: CW17
-
Piston pin: WP083
-
Ring set: 750XKS
-
Displacement: 998 cm³
-
Stroke: 56.50 mm
-
Clearance: 0.05 mm
-
Wossner compression ratio: 13.50:1
-
OEM compression ratio: 12.20:1
-
Dome volume: +0.00 cm³
-
Compression height: 23.50 mm
Cross-Reference OEM Part Numbers
-
Part No. 56-W9884.00A.WO
Vehicle Fitments
-
HONDA CBR1000RR 2004–2007
