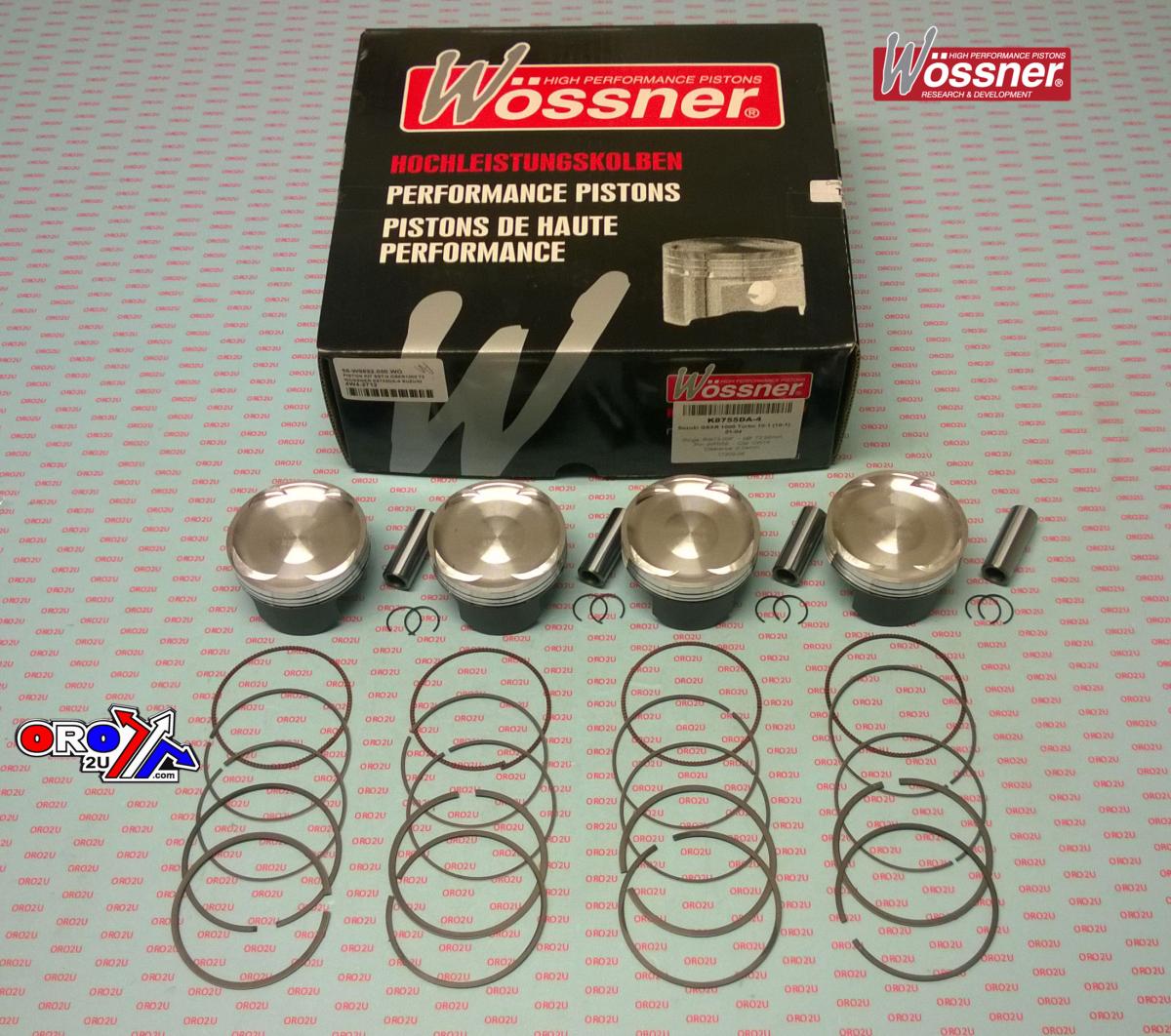

This Wossner forged piston kit K8755DA-4 features a standard 73.00mm bore and is specifically designed for SUZUKI GSXR1000 TURBO models from 2001 to 2004. Supplied as a set of four pistons, this kit is optimised for turbocharged performance, offering a reduced compression ratio for forced induction setups. Manufactured in Germany, it combines precision, thermal stability, and structural durability for high-performance applications.

Features

•


  Forged piston construction designed for turbocharged engine demands





•


  Enhanced heat dissipation from combustion chamber to cylinder walls





•


  Elliptical profile ensures even expansion and thrust load distribution





•


  Prevents localised pressure buildup and piston collapse under boost





•


  Manufactured in Germany




Specifications

•


  Bore: 73.00mm (STD)





•


  Piston code: Wossner K8755DA-4





•


  Clip part number: CW16





•


  Piston pin: WP059





•


  Ring set: 730XAS





•


  Displacement: 988 / 1042 cm³





•


  Stroke: 59.00 mm





•


  Clearance: 0.04 mm





•


  Wossner compression ratio: 10.00:1





•


  OEM compression ratio: 12.00:1





•


  Dome volume: -12.10 cm³





•


  Compression height: 22.55 mm




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9892.000.WO




Vehicle Fitments

•


  SUZUKI GSXR1000 TURBO 2001–2004
