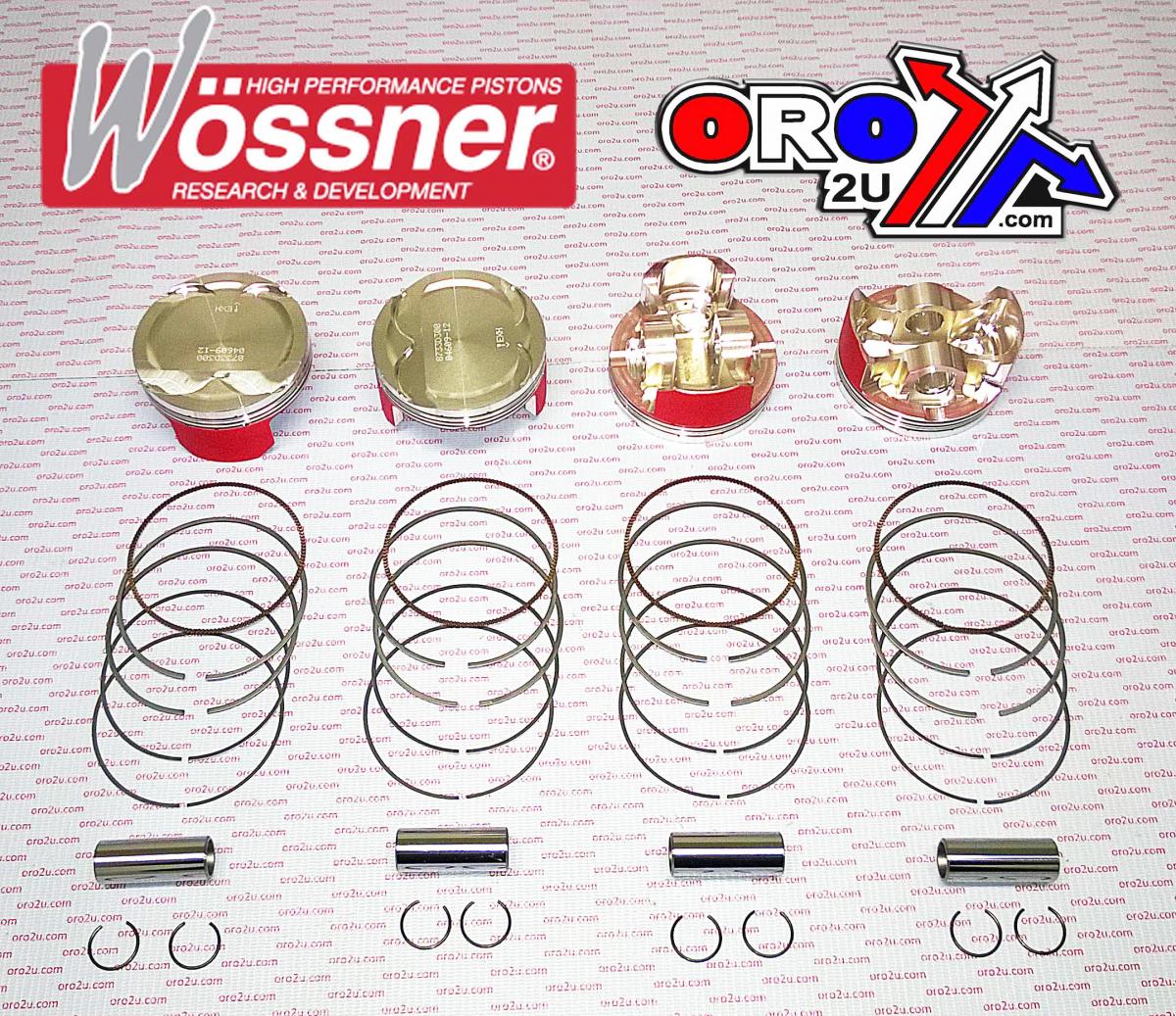

This Wossner forged piston kit K8733DA-4 features a standard 81.00mm bore and is specifically designed for SUZUKI HAYABUSA GSX R 1300 models from 2008 to 2016. Supplied as a set of four pistons from the high-compression 3-ring Pro Series, this kit is tailored for serious performance applications. Manufactured in Germany, it delivers reliable operation under extreme conditions with a reduced compression ratio suitable for turbocharging or high-power setups.

Features

•


  Forged 3-ring piston design for enhanced performance and durability





•


  Optimised for superior heat dissipation from combustion chamber to cylinder wall





•


  Elliptical shape provides uniform expansion and even thrust load distribution





•


  Minimises risk of localised pressure points and piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore: 81.00mm (STD)





•


  Piston code: Wossner K8733DA-4





•


  Clip part number: CW18





•


  Piston pin: WP054





•


  Ring set: RIK81.00A





•


  Displacement options: 1340 / 1406 / 1440 / 1474 cm³





•


  Stroke: 63.00 mm





•


  Clearance: 0.07 mm





•


  Wossner compression ratio: 9.00:1





•


  OEM compression ratio: 11.00:1





•


  Dome volume: -17.80 cm³





•


  Compression height: 24.00 mm




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9895.000.WO




Vehicle Fitments

•


  SUZUKI HAYABUSA GSX R 1300 2008–2016
