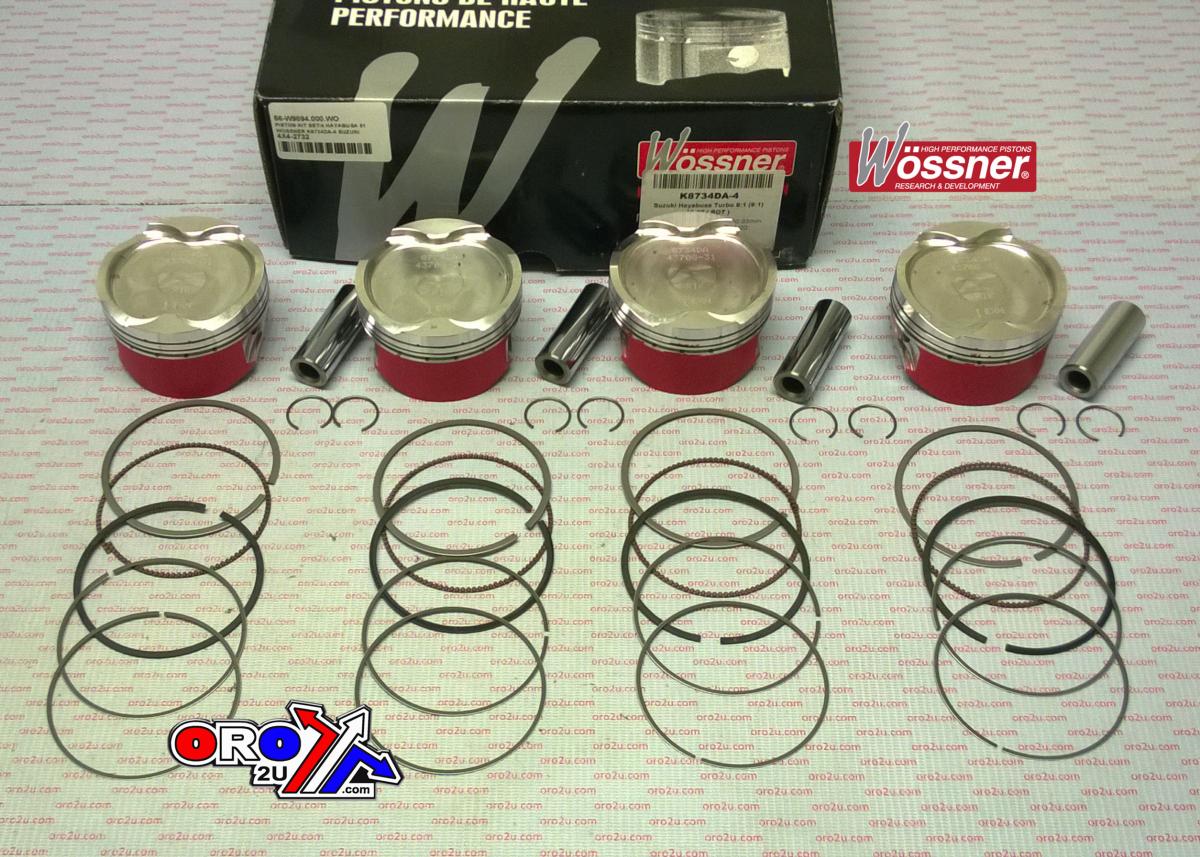

This Wossner forged piston kit K8734DA-4 features a standard 81.00mm bore and is specifically designed for SUZUKI HAYABUSA TURBO GSX R 1300 models from 1999 to 2007. Supplied as a set of four pistons, the kit is optimised for turbocharged applications, offering a reduced compression ratio to support forced induction while maintaining strength and reliability under extreme operating conditions. Manufactured in Germany, it ensures exceptional thermal efficiency and structural integrity.

Features

•


  Forged piston construction designed for high-performance turbocharged engines





•


  Engineered for effective heat transfer from the combustion chamber to cylinder walls





•


  Elliptical profile supports even expansion and thrust load distribution





•


  Minimises localised pressure and prevents piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore: 81.00mm (STD)





•


  Piston code: Wossner K8734DA-4





•


  Clip part number: CW20





•


  Piston pin: WP065





•


  Ring set: RIK81.00A





•


  Displacement: 1299 / 1362 cm³





•


  Stroke: 63.00 mm





•


  Clearance: 0.07 mm





•


  Wossner compression ratio: 9.00:1





•


  OEM compression ratio: 11.00:1





•


  Dome volume: -17.80 cm³





•


  Compression height: 26.80 mm




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9894.000.WO




Vehicle Fitments

•


  SUZUKI HAYABUSA TURBO GSX R 1300 1999–2007
