PISTON KIT SET/4 HAYABUSA 81, WOSSNER K8736DA-4 SUZUKI, TURBO 2008-ON DISPL. 1340cc

Product image 1
Product image 2

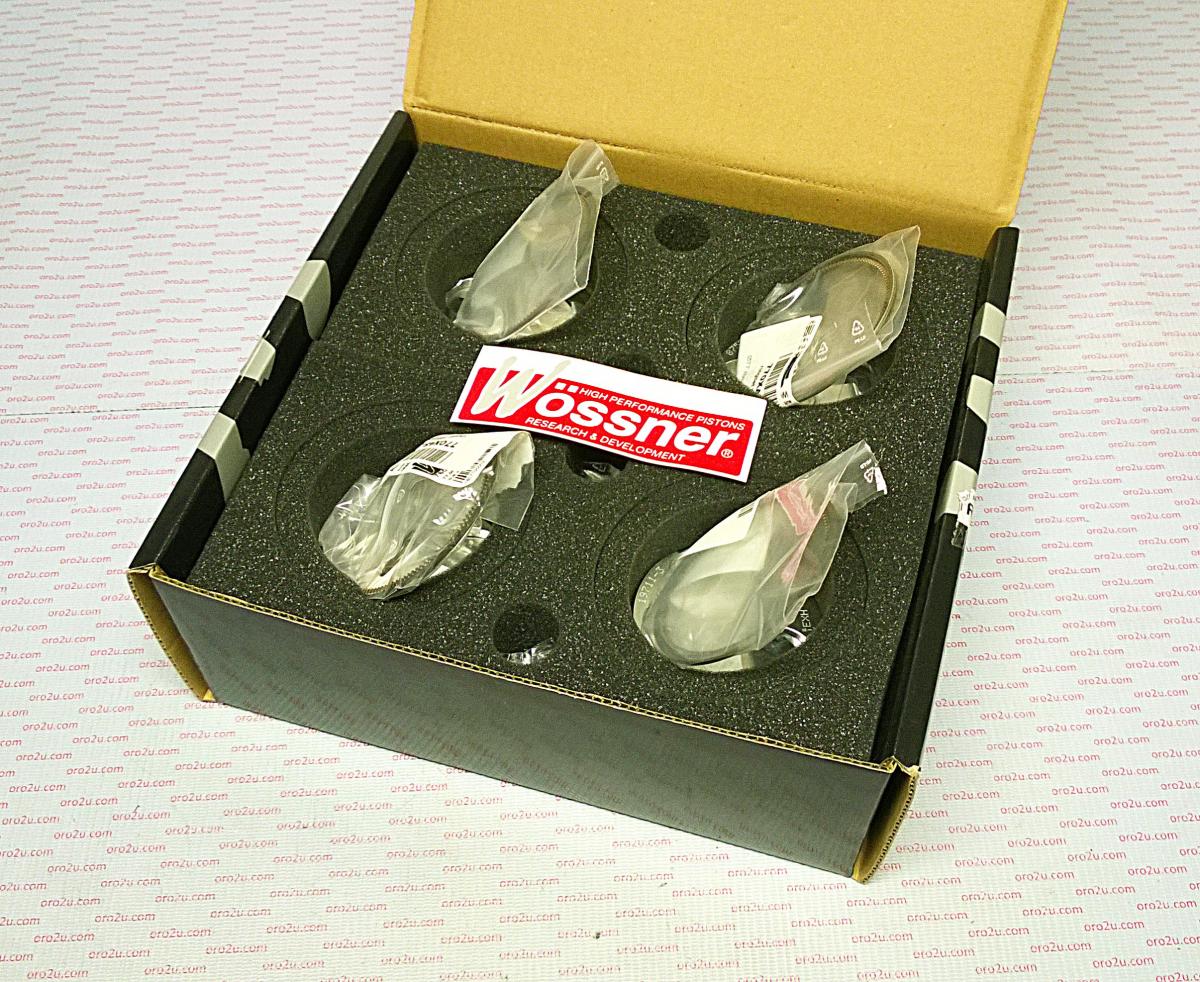

PISTON KIT SET/4 HAYABUSA 81, WOSSNER K8736DA-4 SUZUKI, TURBO 2008-ON DISPL. 1340cc

PISTON KIT SET/4 HAYABUSA 81, WOSSNER K8736DA-4 SUZUKI, TURBO 2008-ON DISPL. 1340cc

This Wossner forged piston kit K8736DA-4 features a standard 81.00mm bore and is specifically designed for SUZUKI HAYABUSA Turbo models from 2008 onward. Supplied as a set of four pistons, this kit is engineered for turbocharged applications, offering a significantly reduced compression ratio for improved forced induction reliability. Manufactured in Germany, it ensures superior thermal performance and mechanical strength under high boost conditions.



Features





  • Forged piston construction designed for turbocharged engine demands




  • Optimised heat transfer from combustion chamber to cylinder walls




  • Elliptical design provides uniform expansion and evenly distributed thrust loads




  • Reduces localised pressure and prevents piston collapse under high stress




  • Manufactured in Germany





Specifications





  • Bore: 81.00mm (STD)




  • Piston code: Wossner K8736DA-4




  • Clip part number: CW18




  • Piston pin: WP064




  • Ring set: RIK81.00A




  • Displacement: 1340 / 1406 cmĀ³




  • Stroke: 65.00 mm




  • Clearance: 0.08 mm




  • Wossner compression ratio: 9.00:1




  • OEM compression ratio: 12.50:1




  • Dome volume: -19.40 cmĀ³




  • Compression height: 24.00 mm





Cross-Reference OEM Part Numbers





  • Part No. 56-W9896.000.WO





Vehicle Fitments





  • SUZUKI HAYABUSA Turbo 2008ā€“ON



$511.13

Original: $1,460.37

-65%
PISTON KIT SET/4 HAYABUSA 81, WOSSNER K8736DA-4 SUZUKI, TURBO 2008-ON DISPL. 1340ccā€”

$1,460.37

$511.13
