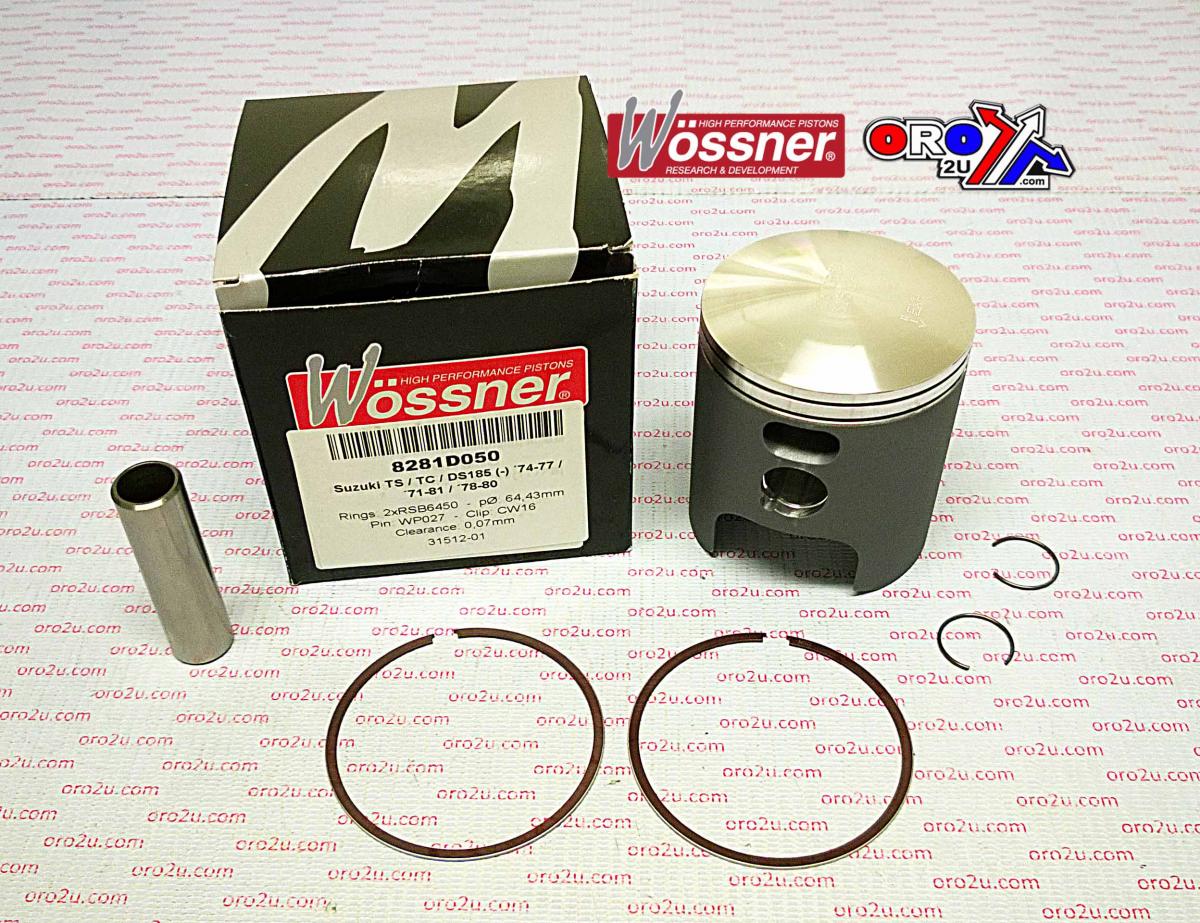

This Wossner forged piston kit is designed as a +0.50mm oversize replacement for Suzuki 185cc two-stroke engines. Ideal for vintage TS, TC, and DS models, it offers exceptional strength and thermal efficiency, making it suitable for engine rebuilds requiring slightly larger bore dimensions.

Features

•


  Forged piston design for superior strength and durability





•


  Elliptical profile ensures even bearing surface during thermal expansion





•


  Optimised heat transfer from combustion chamber to cylinder walls





•


  Helps prevent localised stress and piston collapse under load





•


  Manufactured in Germany




Specifications

•


  Bore Size: 64.50mm





•


  Actual Piston Size: 64.43mm





•


  Display Displacement: 185 cm³





•


  Stroke: 57.00mm





•


  Piston Clearance: 0.07mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Compression Height: 32.00mm





•


  Circlip Part Number: CW16





•


  Pin Part Number: WP027





•


  Ring Set Part Number: RSB6450 x 2




Cross-Reference OEM Part Numbers

•


  Part No: 56-W922_050.WO




Vehicle Fitments

•


  Suzuki TS185 (1974–1977)





•


  Suzuki TC185 (1971–1981)





•


  Suzuki DS185 (1978–1980)
