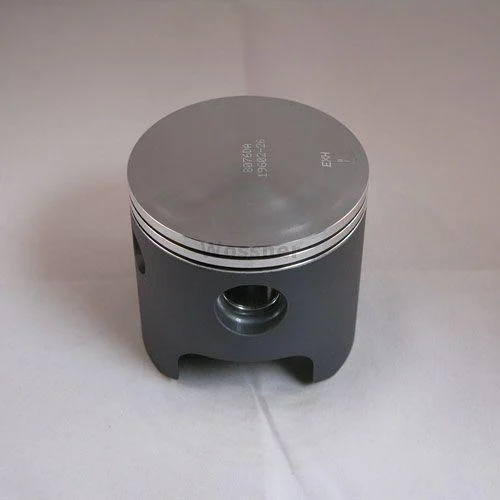

PISTON KIT WR360 78.00mm, WOSSNER 8076DA HUSQVARNA 504120501
Piston kit 78.00mm Bore 77.94 Wossner 8076DA (STD)
HUSQVARANA
CR 360 1992 - 2002,
WR 360 1992 - 2002,,
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany.
Part No 56-W111 (oro2u.com)
Lock P/N CA18
Pin P/N WP039
Ring Set P/N RSC7800 X 2
Display (cm3) 360
Hub stroke (mm) 75.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 27.00
Theorectical weight (G)
Cross reference numbers ONLY.
504120501, 09104798, 10893M07800
Product Information
Product Information
Shipping & Returns
Shipping & Returns
PISTON KIT WR360 78.00mm, WOSSNER 8076DA HUSQVARNA 504120501
PISTON KIT WR360 78.00mm, WOSSNER 8076DA HUSQVARNA 504120501
Piston kit 78.00mm Bore 77.94 Wossner 8076DA (STD)
HUSQVARANA
CR 360 1992 - 2002,
WR 360 1992 - 2002,,
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany.
Part No 56-W111 (oro2u.com)
Lock P/N CA18
Pin P/N WP039
Ring Set P/N RSC7800 X 2
Display (cm3) 360
Hub stroke (mm) 75.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 27.00
Theorectical weight (G)
Cross reference numbers ONLY.
504120501, 09104798, 10893M07800
Original: $380.10
-65%$380.10
$133.03Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Piston kit 78.00mm Bore 77.94 Wossner 8076DA (STD)
HUSQVARANA
CR 360 1992 - 2002,
WR 360 1992 - 2002,,
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany.
Part No 56-W111 (oro2u.com)
Lock P/N CA18
Pin P/N WP039
Ring Set P/N RSC7800 X 2
Display (cm3) 360
Hub stroke (mm) 75.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 27.00
Theorectical weight (G)
Cross reference numbers ONLY.
504120501, 09104798, 10893M07800
