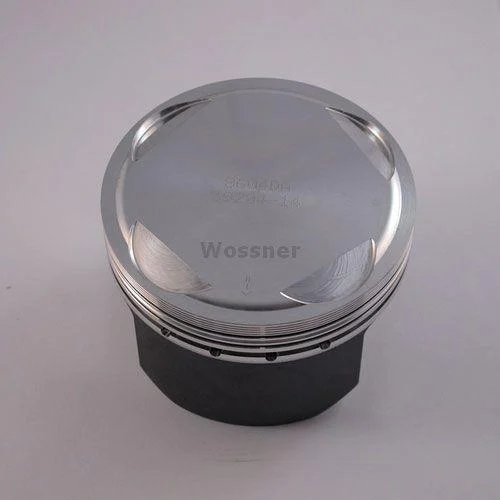

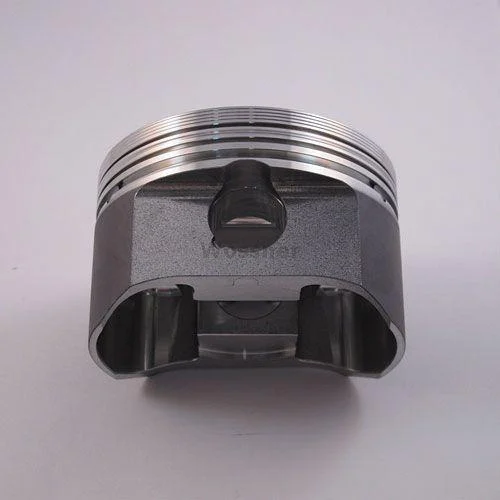

Wössner forged piston kit with an 86.50mm bore, designed for Honda XR400R motorcycles and TRX400 series ATVs. Manufactured in Germany, this high-performance piston enhances strength, heat transfer, and durability. The elliptical design ensures uniform bearing surface distribution, reducing localized pressure and preventing piston collapse.

Features

• Forged construction for superior strength and durability


• Optimized heat transfer to cylinder walls


• Elliptical design for uniform bearing surface under heat expansion


• Increased compression ratio for improved engine performance


• Made in Germany

Specifications

• Bore: 86.50mm (86.44mm actual)


• Display: 397 cm³


• Stroke: 70.00mm


• Clearance: 0.06mm


• Wössner Compression Ratio: 11.00:1


• OEM Compression Ratio: 10.00:1


• Dome Volume: +3.20 cm³


• Compression Height: 26.20mm

Cross-Reference OEM Part Numbers

• Wössner Piston: 8604D150


• Lock: CW20


• Pin: WP052


• Ring Set: 865XSY


• Rod: P4021

Vehicle Fitments

• Honda XR400R (1996-2004)


• Honda TRX400EX (1999-2008)


• Honda TRX400X (2009-2012)
