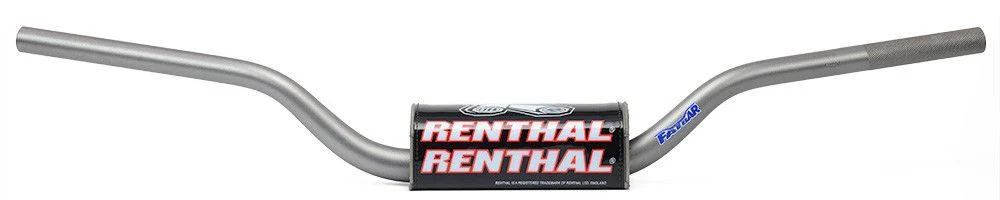

Oversized, braceless tapered aluminium handlebar with a 28.6 mm clamping diameter and 22.2 mm control ends, finished in Titanium and manufactured from 7010-T6 alloy for strength, fatigue resistance and precise control. Dedicated bend 814 provides model-specific geometry.

Features

• Braceless tapered handlebar with 28.6 mm clamping diameter and 22.2 mm control ends


• Manufactured from exclusive 7010-T6 aluminium alloy


• Shot-peened surface finish to increase fatigue strength


• Hard-anodised for corrosion resistance


• Laser-etched positioning marks for accurate setup


• Smooth, unknurled control areas

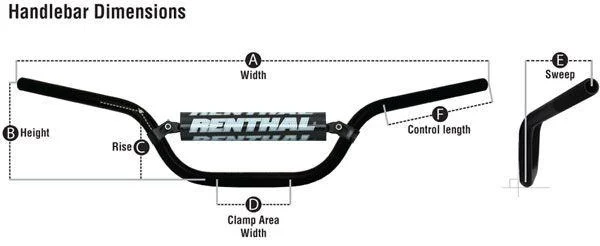

Specifications

• Bend: 814 (KFX450)


• Part number: 814-01-TT


• Colour/finish: Titanium (anodised)


• Clamp diameter: 28.6 mm (1-1/8")


• Control diameter: 22.2 mm (7/8")


• Width: 769 mm (30-1/4")


• Height: 98 mm (3-7/8")


• Rise: 64 mm (2-1/2")


• Sweep (pullback): 72 mm (2-13/16")


• Clamping width: 120 mm (4-3/4")


• Control length (each side): approx. 195 mm


• Material: 7010-T6 aluminium


• Supplied without cross-brace or pad

Vehicle Fitments

•


  Kawasaki KFX450R 2008–2014
