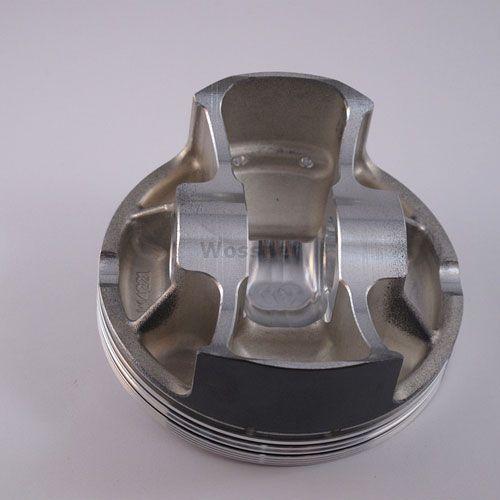

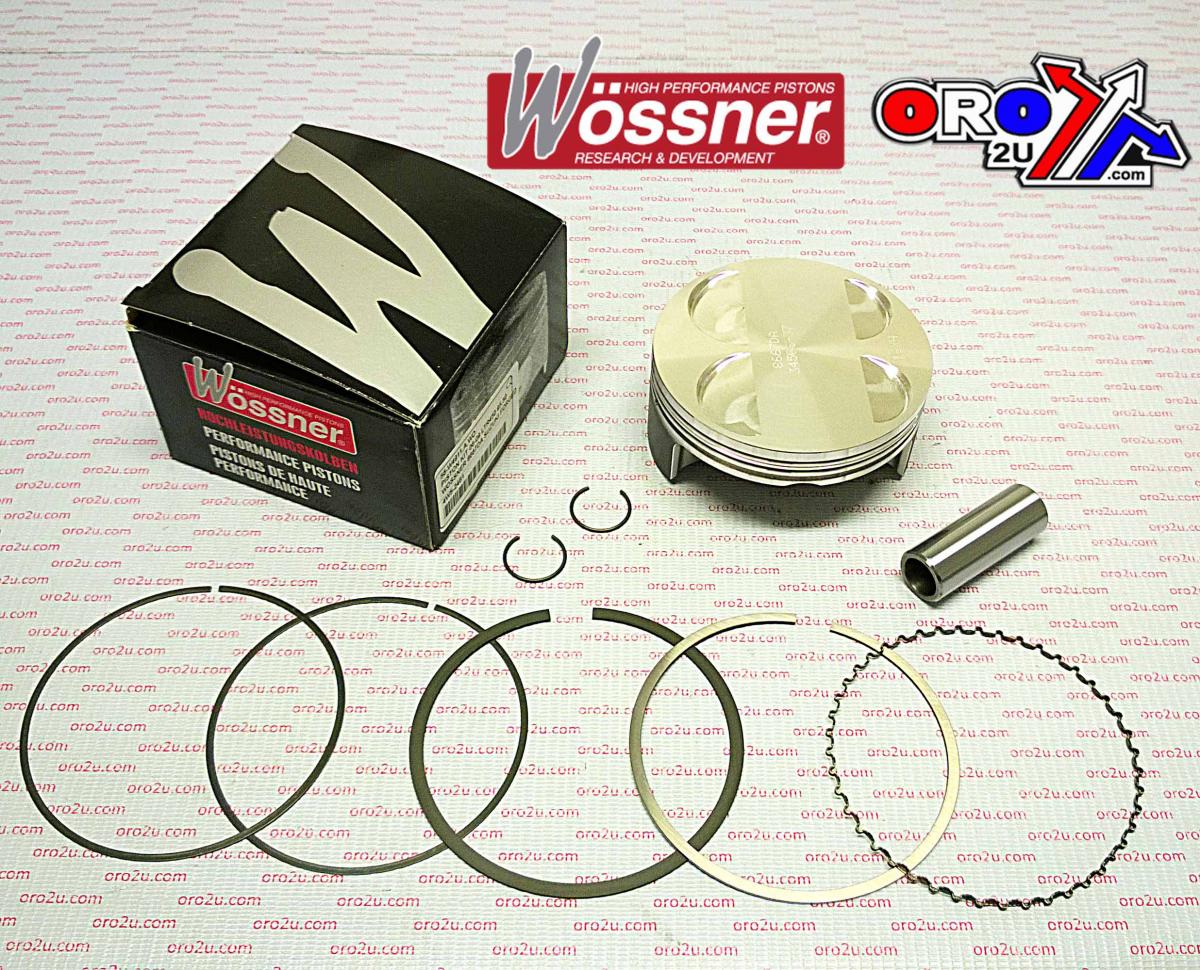

The Wossner 8667DC forged piston kit features a 95.52mm bore and is engineered for Suzuki LTR450 ATVs produced from 2002 to 2011. Made in Germany, this piston is built for optimal strength and heat management. Its elliptical design ensures even load distribution, reducing stress and the risk of collapse under high temperatures.

Features

• Forged piston design for increased durability and structural integrity


• Optimized for efficient heat transfer to cylinder walls


• Elliptical shape allows uniform pressure distribution during expansion


• Reduces localized pressure and prevents piston collapse


• Manufactured in Germany

Specifications

• Bore: 95.52 mm


• Actual Bore Diameter: 95.47 mm


• Display: 450 cm³


• Hub Stroke: 62.80 mm


• Clearance: 0.05 mm


• Compression Height: 24.50 mm


• Dome Volume: -3.00 cm³


• Wossner Compression Ratio: OEM


• OEM Compression Ratio: 11.70:1


• Theoretical Weight: Not specified

Cross-Reference OEM Part Numbers

• Piston: 8667DC


• Lock: CW19


• Pin: WP037


• Ring Set: 955XSY


• Rod: P4011


• Part No.: 56-W4911.C.WO

Vehicle Fitments

• Suzuki LTR450 2002–2011
