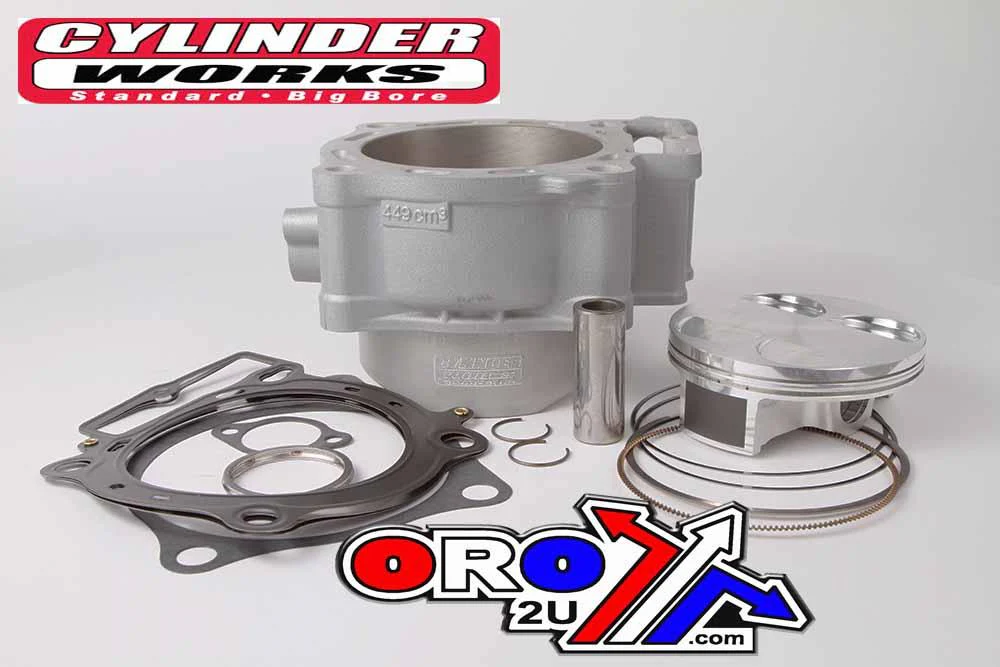

Standard Bore Cylinder Kit (10006-K01) for Honda CRF450R (2009-2016) is a direct bolt-on replacement designed to match OEM specifications. With a bore size of 96mm and a compression ratio of 12.0:1, this kit is ready to install without the need for replating or additional machining. Engineered for durability and performance, it includes all components needed for a complete installation.

Features:

• Standard bore cylinder with 96mm diameter.


• Compression ratio: 12.0:1.


• Nickel Silicon Carbide plating for extended cylinder life.


• Honed to precise dimensions for easy piston installation.


• Direct bolt-on design, requiring no machining or replating.


• Complete kit includes gaskets, cylinder, piston, rings, pin, and clips.

Specifications:

• Bore size: 96mm


• Compression ratio: 12.0:1


• Piston assembly: Vertex #23455

Included Items:

• Cylinder


• Piston


• Rings


• Top-end gaskets


• Pin and clips

Cross-Reference OEM Part Numbers:

• Honda: 06111-MEN-A30


• Honda: 12100-MEN-A30


• Honda: 12100-MEN-A50


• Honda: 12191-MEN-A31


• Honda: 12251-MEN-A31


• Honda: 13011-MEN-A30


• Honda: 13101-MEN-A30


• Honda: 13111-MEN-A30


• Honda: 13112-MEN-A30

Vehicle Fitment:

• Honda CRF450R (2009-2016)
